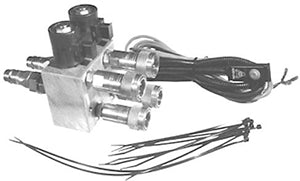

TWO CIRCUIT HYDRAULIC MULTIPLIER WITH COMMAND CONTROL AND ISO COUPLERS
Product Features
Hydraulic Multiplier with command control push buttons. Makes one hydraulic circuit into two circuits, doubling the number of hydraulic remotes. Push buttons allow you to select circuit.
The Hydraulic Multiplier plugs directly into your existing hydraulic outlets allowing you to control two hydraulic circuits from a single tractor lever. Use on any open, closed or PFC hydraulic system. Operates either single acting or double acting cylinders.
Includes two-circuit selector valve with 12-volt negative ground coils, command control button, 12 ft. wiring harness, 6 ft. power wires with fuse kit, ISO quick couplers and tips
Command Control Features:
- Circuit One is normally Live
- Circuit Two is activated when control button is pressed. When the button is released - power is automatically returned to Circuit One
- Hands-On Convenience
- Mounts Easily to Control Lever for fingertip control
- Adjust on the go for sequencing
- Waterproof pushbutton switch
Product Specifications
| Brand | Add-On |
|---|---|
| Circuits | 2 Circuit |
| Coil Duty Rating | Continuous |
| Couplers Included | Yes |
| Current Draw | 1.67 amps per coil |
| Filtration | 10 Micron Recommended |
| Fluids | Mineral Based and Synthetic |
| Hydraulic Systems | Open / Closed / PFC |
| Max Flow | 15 GPM |
| Mounting Holes | .406 Inch |
| PSI Rating | 3000 PSI |
| Voltage | 12 Volt |
