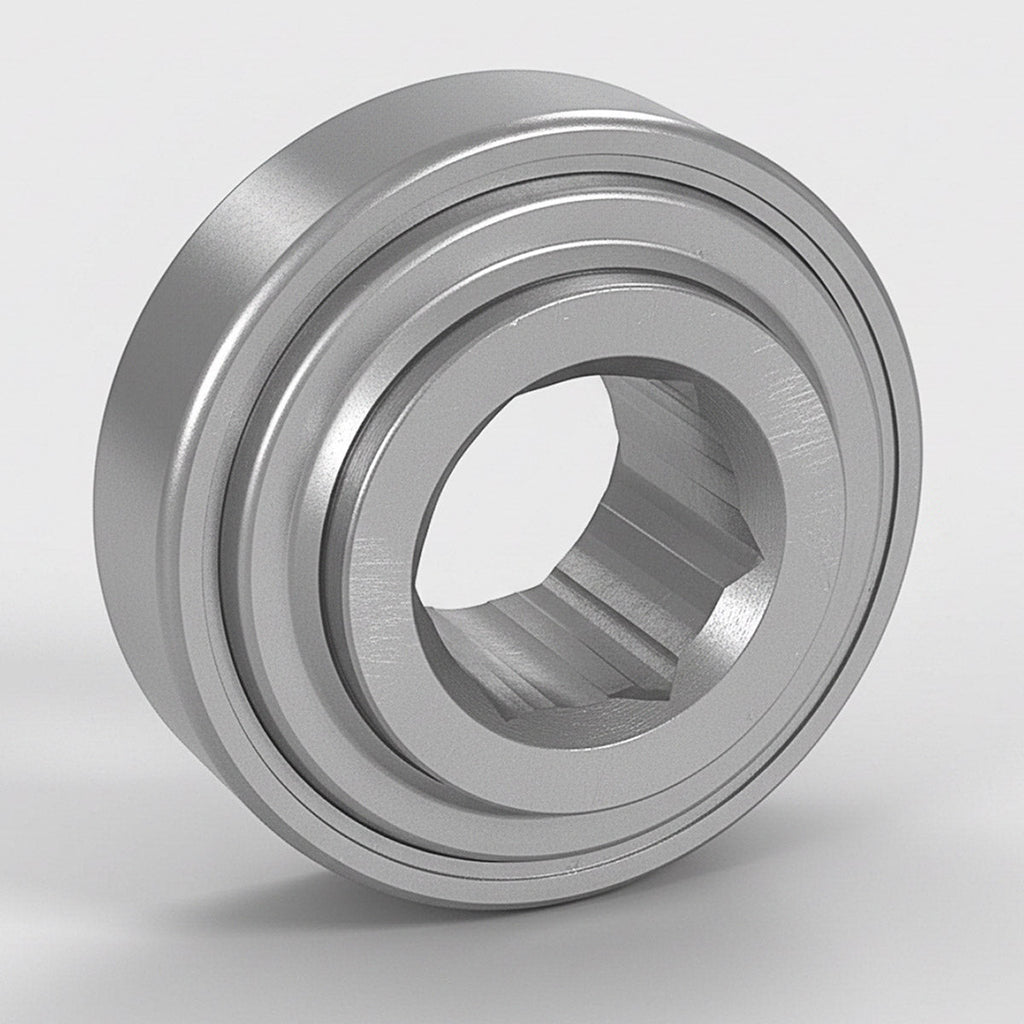

TIMKEN AG SPECIAL RADIAL BEARING - 1-1/4" HEX BORE JD9373 / HPS104TP
Product Fitment
| Make | Type | Model |
|---|---|---|
| Allis Chalmers | Disc Harrow | 2300 |
Product Features
Hex Bore Bearing
Sealed / Spherical O.D. / Hex Bore
- Desinged to be used on outer or innner ring rotation in low-speed, moderately-loaded applications, primarily in Agricultural Implements and conveyors
- Tolerances of the hex bore are suitable for mounting on cold rolled hex shafting
- Main advantage is ease of mounting. No collars or setscrews or other locking devices are required to lock the inner ring to the hex shaft.
Product Specifications
| Bearing I.D. | 1-1/4" |
|---|---|
| Bearing O.D. | 80mm |
| Bearing Type | Specialty Ag |
| Bore Shape | Hex |
| Greasable / Sealed | Sealed |
| Outer Race Shape | Spherical |
| Inner Ring Width | 1.438 Inch |
| Outer Ring Width | .709 Inch |
| Primary Application | Baler |
| Brand | Timken |
| Interchange Numbers | 1577800M1, 31-1577800, 311577800, 575883, 700703101, 70575883, 70586143, A70575883, AW208PPB16, JD9373, TP-JD9373, TPJD9373 |
