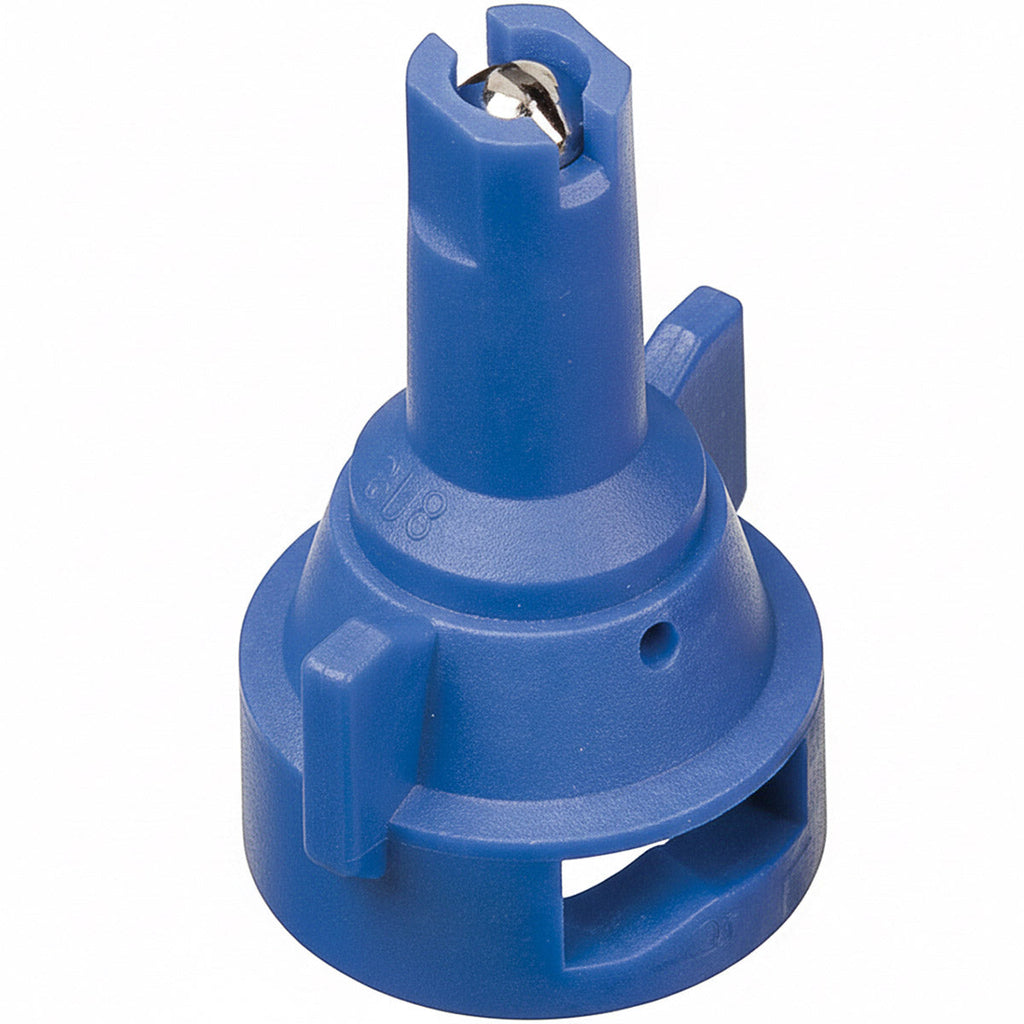

TeeJet AIC11003VS Air Induction Flat Spray Tip, Poly/Stainless, 110°, Blue, Orifice 3
Product Features
AIC TEEJET
Air Induction Flat Spray Tips
- Produces a 110° tapered edge flat spray pattern for uniform coverage in broadcast spraying applications.
- AIC Tips are Available with a polymer insert holder with the following insert options:
- VS Series - stainless steel (015–15 capacities)
- VK Series - ceramic (025–05 capacities)
- VP Series - polymer(02–10 capacities)
- Larger droplets for less drift.
- Depending on the chemical, produces large air-filled drops through the use of a Venturi air aspirator.
- AI TeeJet nozzle molded into Quick TeeJet® cap provides automatic spray alignment.
- Includes tightly fitting washer that stays put and assures a good seal.
- Recommended pressure rating 30–115 PSI (2–8 bar).
Product Specifications
| Material | Poly/Stainless |
|---|---|
| Nozzle Application | Broadcast |
| Drift Control | Excellent |
| Nozzle Type | Air Induction |
| Color | Blue |
| Orifice Size | 3 |
| Nozzle Spray Angle | 110 Degree |
| TeeJet Cap Series | Cap / Tip Combo |
| Brand | TeeJet |
| Interchange Numbers | AIC11003-VS |
