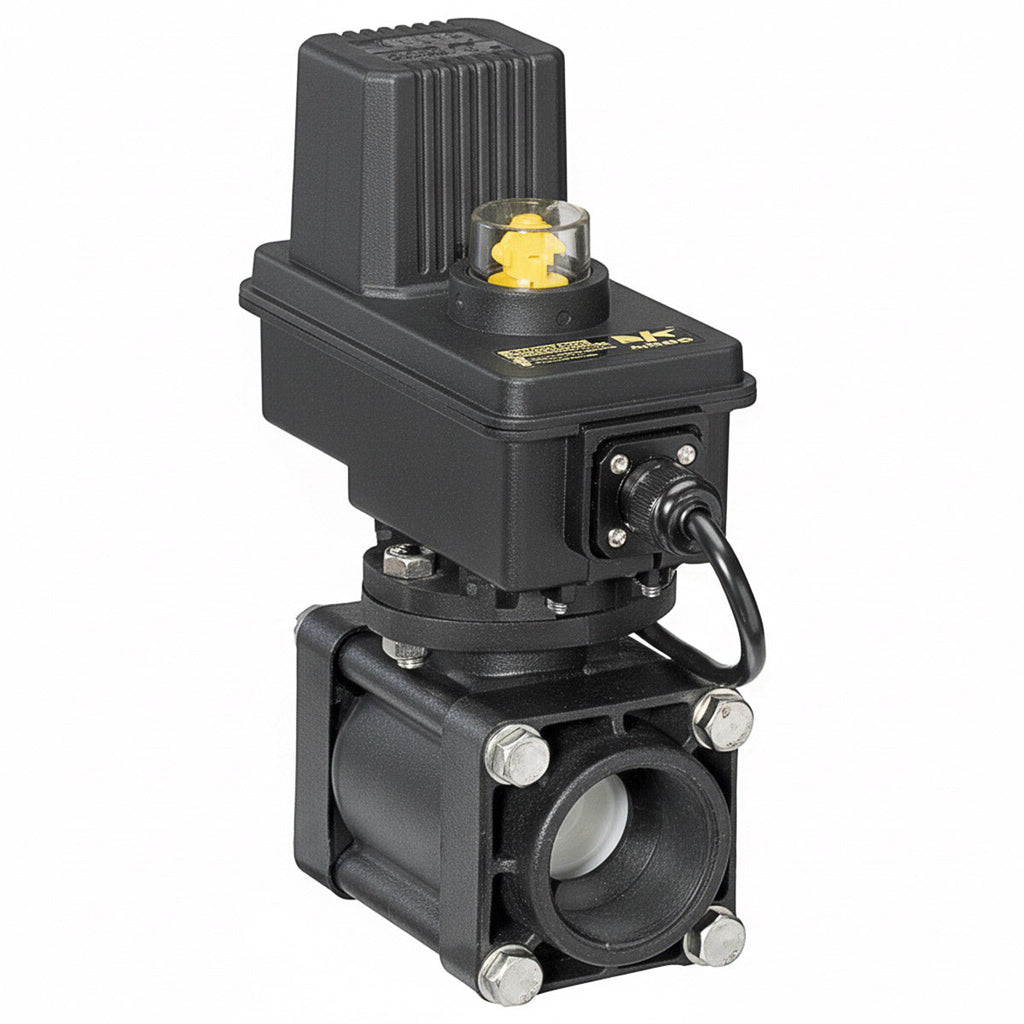

TeeJet 346BEC25C 12V Electric Ball Valve, Poly, 1-1/4" Female NPT x 1-1/4" Female NPT, 150 PSI

TeeJet 346BEC25C 12V Electric Ball Valve, Poly, 1-1/4"; Female NPT x 1-1/4"; Female NPT, 150 PSI

The TeeJet 346BEC25C 12V Electric Ball Valve, Poly, 1-1/4"; Female NPT x 1-1/4"; Female NPT, 150 PSI is a genuine TeeJet sprayer valve for agricultural and turf spraying systems. It features 1-1/4"; Female NPT x 1-1/4"; Female NPT connection, 150 PSI rating. Use this part when you need a dependable replacement or upgrade that matches the TeeJet part number shown above.

Key Features

• Electric Shutoff Valve Flexible inlet/outlets provide quick simple plumbing for a single valve Available in 2-way or 3-way versions.
• 2-way valves allow complete shutoff while the 3-way valves divert flow to a bypass line when boom controls are shut off.
• Stainless steel stem with optional polypropylene or stainless steel ball.

Specifications

• TeeJet Part Number: 346BEC25C
• Material: Poly
• Connection Size: 1-1/4 Inch
• Connection: NPT
• Connection Specification: 1-1/4"; Female NPT x 1-1/4"; Female NPT
• Flow Rate: 100 GPM with only 5 PSI Loss
• Max PSI Rating: 150 PSI
• Spray Valve Type: Electric Valves
• Spray Valve Category: Ball Valves - 12v
• Ball Valve Type: Ball Valves - 12v
• Diaphragm Material: Viton
• Switch: Single Pole / Single Throw

Fitment and Use

Confirm this TeeJet part number, connection size, material, and operating specifications match your sprayer setup before ordering.
