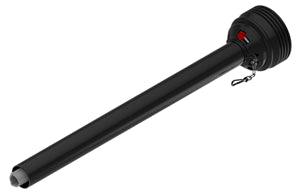

SERIES 8 BONDIOLI PAVESI TRILOBE STYLE CV IMPLEMENT HALF SHAFT
Product Features
Metric Tri-Lobe Implement Half Shaft
Common Applications: Round Balers / Flex Wing Mowers / Hay Rakes / Tedders / Sprayers
Series 8
- Weasler CV's Now Equipped with Italian Bondioli Style Tri-Lobe Tubing
- Service a Very Significant Field Population of machines equipped with Italian CV Shafts
- Weasler CV has Fully Enclosed Center Housing with Patented Ball and Socket System = Highler Performance and Longer Life
- Light Weight and Compact CV Desing for handling ease and easy access for all Greasing Locations
- Easy OFF / Easy ON CV carries Patented and User-Friendly Easy Lock Guard System
Tractor Side Shafts:
- 93-14586860 - 1-3/8 x 6 Spline Tractor Yoke
- 93-14686860 - 1-3/8 x 21 Spline Tractor Yoke
- 93-14786860 - 1-3/4 x 20 Spline Tractor Yoke
Product Specifications
| Bondioli-Pavesi PTO Series | 8 |
|---|---|
| Compressed Overall Length | 42.00 Inches |
| Driveshaft Application | Round Balers/ Flexwing Mowers/ Hay Rakes/ Tedders/ Sprayers |
| PTO Product Category | Driveshaft |
| PTO Product Sub Category | CV Half Shaft |
| PTO Tubing Shape | Trilobe Tube |
| Driveshaft Implement End | Minus End Yoke |
| Tube or Shaft Size | 45.00 MM Tube |
| Wall Thickness MM | 5.40 MM |
| Wall Thickness Inch | 0.213 |
| Cross & Bearing Cap Diameter | 1.38 Inch / 34.90mm |
| Cross & Bearing Overall Length | 4.19 Inch / 106.50mm |
| Brand | Weasler |
