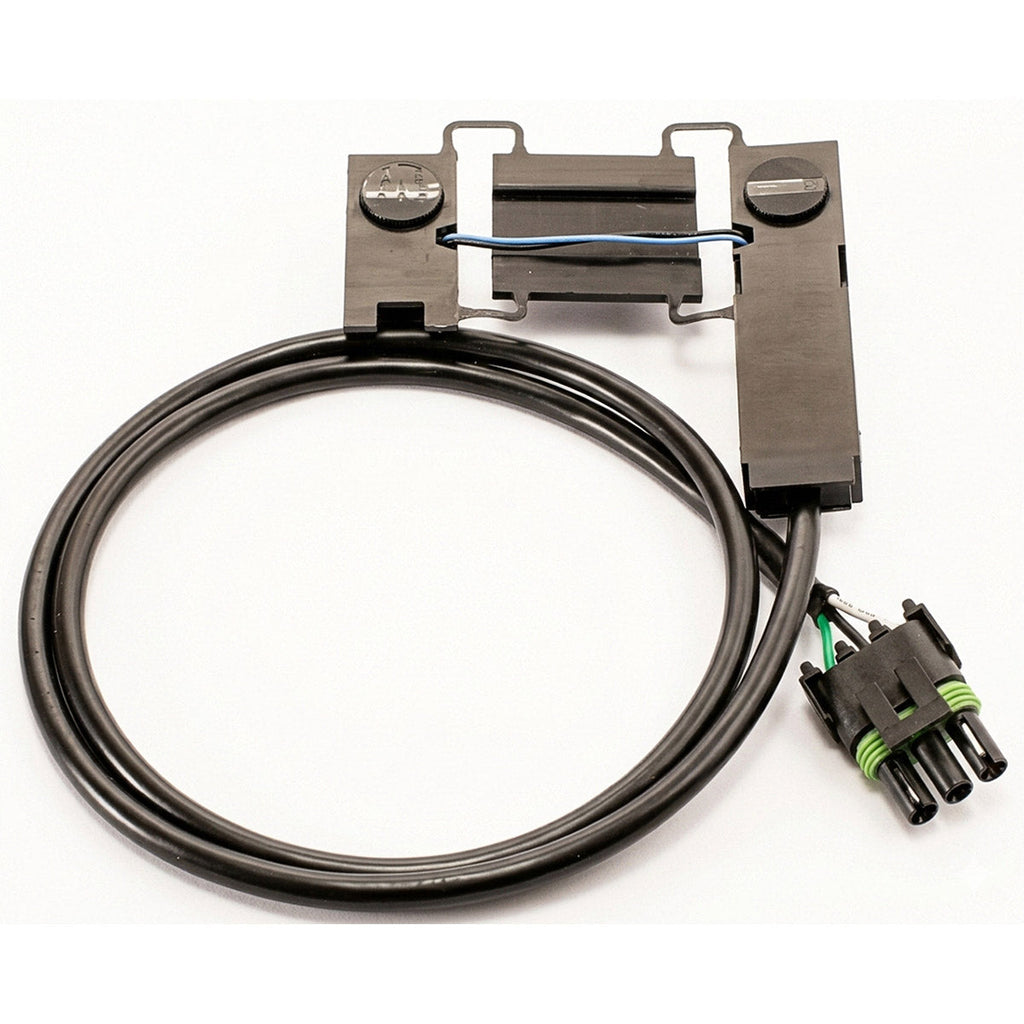

Seed Sensor for John Deere AA61908 - Standard Rate, LED, Red
Product Fitment
| Make | Type | Model |
|---|---|---|
| John Deere | Grain Drill | 1530, 1535 |
| John Deere | Planter | 1700, 1705, 1710, 1720, 1725, 1740, 1750, 1760, 1770, 1780, 1790, DB44, DB58, DB60, DB66, DB80, DB90 |
Product Features
SMA's analog seed sensor is designed with 4 LEDs and 4 photoreceptors to ensure a homogeneous light curtain, thus avoiding blind spots.
To ensure a long and troublefree life, each sensor uses only the highest quality material and is indivually tested to a 99.2% 'random test' count accuracy.
Sensor is compatible with most planters, seeders, and OEM monitors.
Product Specifications
| Connector | 3-Pin Delphi Weather Pack |
|---|---|
| Pin A | Green Wire - Signal |
| Pin B | Black Wire - Ground |
| Pin C | Red Wire - Supply Voltage |
| Interchange Numbers | 452440891AS1, AA41595, AA58293, AA58295, AA61908, TP-AA61908, TPAA61908 |
