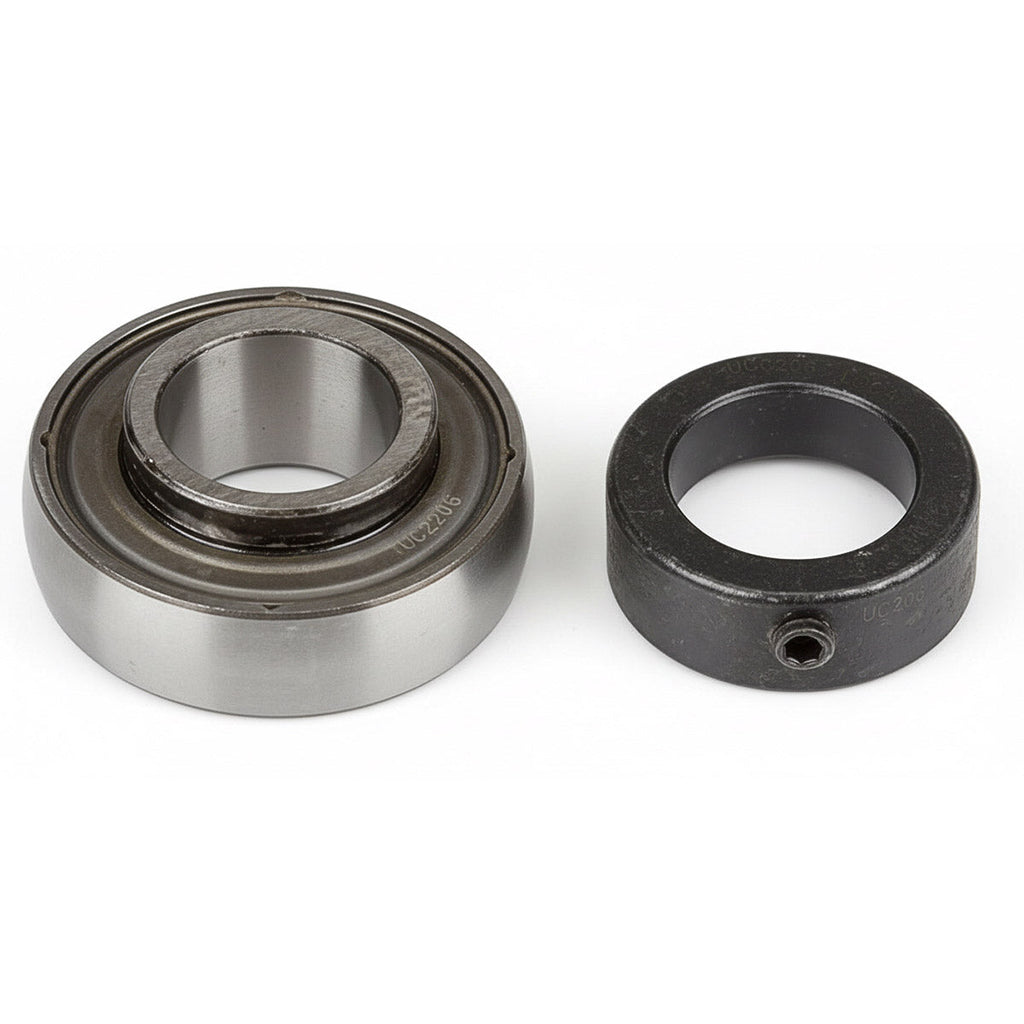

SEALED INSERT BEARING 1" ID - NARROW INNER RING
Product Fitment
| Make | Type | Model |
|---|---|---|
| John Deere | Planter | 1770NT, 1790, DB120, DB40, DB44, DB58, DB60, DB66, DB80, DB88, DB90 |
| Massey Ferguson | Combine | 750, 760, 850, 860 |
Product Features
Ball Bearing Insert
Narrow Inner Ring - Sealed Standard Agricultural Applications
RA-RRB Series
- Narrow Inner ring type with self-locking collar
- Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
- Factory pre-lubricated
- Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment
Product Specifications
| Bearing I.D. | 1" |
|---|---|
| Bearing Type | Insert Bearing |
| Greasable / Sealed | Sealed |
| Inner Race | Narrow |
| Outer Race Shape | Spherical |
| Shaft Lock Type | Lock Collar |
| Bearing O.D. | 52mm |
| Bore Shape | Round |
| Basic Outer Ring Size | 205 |
| Inner Ring Width | .844 Inch |
| Outer Ring Width | .591 Inch |
| Brand | Timken |
| Interchange Numbers | 010-11213, 1011213, 1061, 1113373, 1308951, 15-16-001, 1516001, 15A5743A, 16063, 168636, 1FRA100RRB, 204807C91, 20H4686, 214366C91, 21801601, 3074CSA, 3095, 3101580R91, 360109V1, 38261, 40-135, 41547, 455965R91, 475698R91, 500-01-689, 50001689, 501684E, 50302, 520063, 528342R91, 528342R92, 574844, 710533, 710715, 71308951, 7441-3, 74413, 80038261, 80574844, 834199M1, 834199M91, 842736M1, 842736M91, 84330070, 8555, 8665, 9-90059, 990059, A214366C1, A842736M1, AC10858, AJD8665, AK2752, AM3028, AM3095, ARA100NPPB, B91456, FH205-16GV, H435858, J2752IMP, JD8555, JD8555L/C, JD8665, K2752, M216, NPS100RPC, RA100NPPB, RA100RRBBCOL, T16069, TIS-F6003, TISF6003, TP-JD8555, TP-JD8665, TPJD8555, TPJD8665, X5633, X5683, Z391A |
