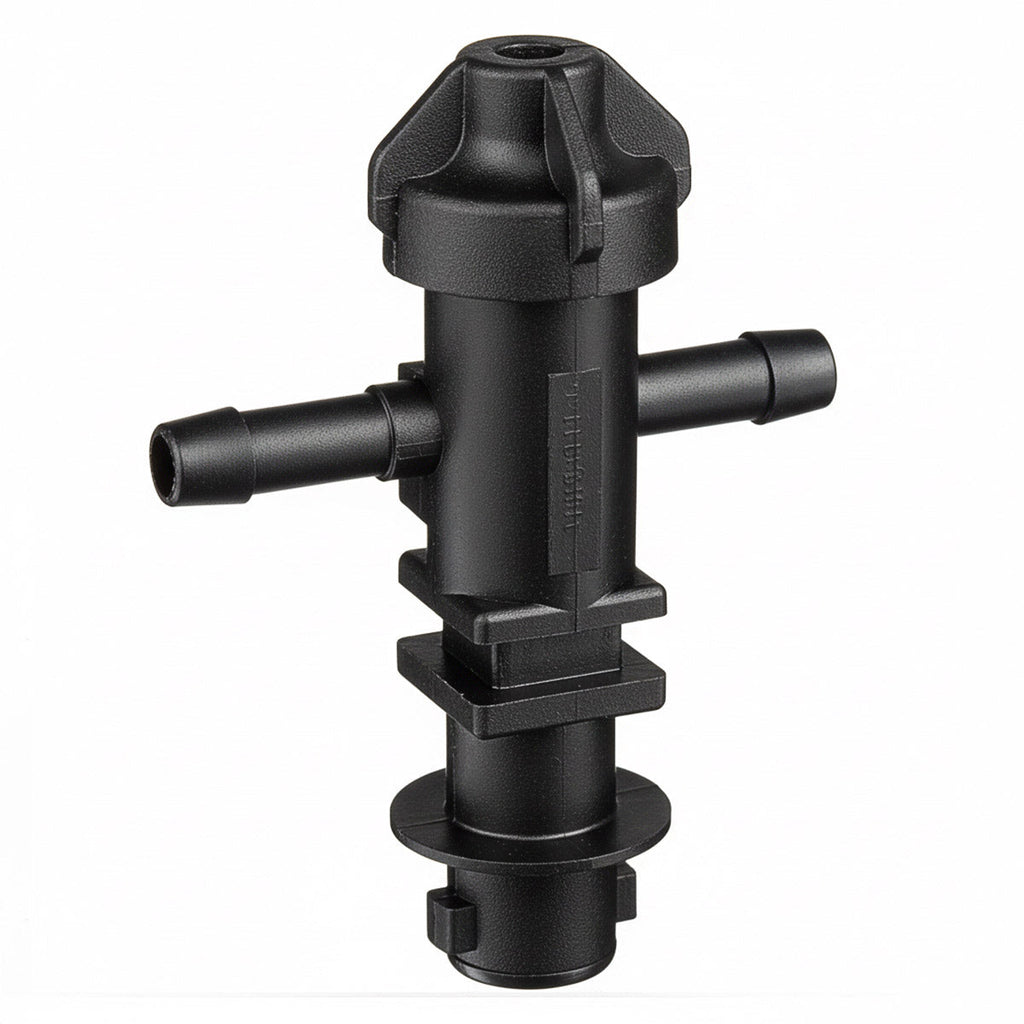

QUICKJET DOUBLE BARB NOZZLE BODY - 3/8" HOSE - HAS TOP DIAPHRAGM
Product Features
QuickJet Single Nozzle Body Assemblies for Dry Booms
QJ300 Series with Diaphragm Check Valve
- Low-profile design allows maximum protection against damage.
- Available with single and double hose shanks for 3/8", 1/2" and 3/4" I.D. hose.
- Drip-free shutoff with TeeJet ChemSaver. Opens at 10 PSI (0.7 bar).
- Standard diaphragm is EPDM with Viton optional.
- Maximum operating pressure of 300 PSI (20 bar).
- Flow rate: 3.5 GPM (13.2 l/min) at 5 PSI (0.34 bar) pressure drop, 4.9 GPM (18.5 l/min) at 10 PSI (0.69 bar) pressure drop.
Product Specifications
| Connection Size | 3/8 Inch |
|---|---|
| Boom Component Category | Nozzle Body |
| Nozzle Body Type | QuickJet Nozzle Body |
| Nozzle Body Sub Type | Double Hose Barb |
| Wet / Dry Boom | Dry Boom |
| Material | Nylon |
| Connection Specification | (2) 3/8" Hose Barb x QuickJet Body |
| Brand | TeeJet |
| Interchange Numbers | 233422252312375NYB, AG009639, SPQ2225238 |
