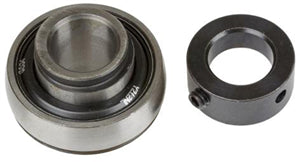

SEALED INSERT BEARING-1-1/4" ID- WIDE INNER RING
Product Features
Ball Bearing Insert
Wide Inner Ring - Sealed Standard Industrial / Agricultural Applications
KRRB Series
- Wide Inner Ring with Self Locking Collar
- For extremely dirty or wet conditions
- R-Seals with flared lips firmly contact the ground OD of the inner ring and provide a positive seal against dirt and other contaminants while effectively retaining the lubricant
- Shroud-Seals provide extra effectiveness and protection
- Extra-wide design provides additional shaft support and extra-large grease capacity
- Spherical OD
Product Specifications
| Bearing I.D. | 1-1/4" |
|---|---|
| Bearing Type | Insert Bearing |
| Greasable / Sealed | Sealed |
| Inner Race | Wide |
| Outer Race Shape | Spherical |
| Shaft Lock Type | Lock Collar |
| Bearing O.D. | 62mm |
| Bore Shape | Round |
| Basic Outer Ring Size | 206 |
| Inner Ring Width | 1-7/16 Inch |
| Outer Ring Width | .709 Inch |
| Brand | Timken |
| Interchange Numbers | 010-10217, 010-10218, 1010217, 1010218, 1103KRRB3-PC, 1114843, 12902, 1308995, 15A2811, 175089, 313CBA, 438CUA, 50336, 557994R91, 619737R91, 619738R91, 711622, 71308995, 76836, 80076836, 833512M1, 84330032, 84330111, A600118, A71308995, F51085, FCB3C2, HS5125, JD9274, WPS103GP2C |
