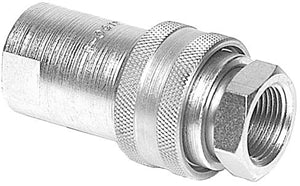

4000 SERIES QUICK COUPLER WITH POPPET TIP - 1/4" BODY x 1/4"-18 NPT THREAD
Product Features
4000 Series - Manual Sleeve Design
Complete Coupler
The 4000 Series brings to the industry a proven design for use on agricultural machinery and other rugged applications.
Protective dust plugs and caps play a crucial role in the life of a quick coupling and no purchase of a hydraulic quick coupling is complete without the selection of an appropriate dust plug and cap
- Accepts ISO 5675 Standard universal tips
- Basic operation where coupler sleeve is manually retracted to allow connection with male tip
- Critical parts are induction hardened
- Ball and poppet valve options
- Protective zinc plating with clear trivalent chromate finish
Product Specifications
| Ball or Poppet Valve | Poppet |
|---|---|
| Brand | Pioneer |
| Connect Under Pressure | No |
| Coupler Body / Coupler Tip | 4050-2P / 4010-2P |
| Coupler Body Size | 1/4 Inch |
| Coupler Clamp Series | Not Available |
| Dust Cap Series | 5209-2M Series |
| Dust Plug Series | 5205-2M Series |
| Interchange Numbers | 4000-2, 4000-2P, 40002, A40002P, C59-0020, C590020, MW4000-2 |
| Largest Diameter | 1.50 Inch |
| Max PSI | 3000 PSI |
| Package Type | Bulk Stock |
| Rated Flow | 3 GPM |
| Sleeve Operation | Manual Connect |
| Thread Size | 1/4 - 18 NPTF |
| Wrench Flats | 7/8 Inch |
