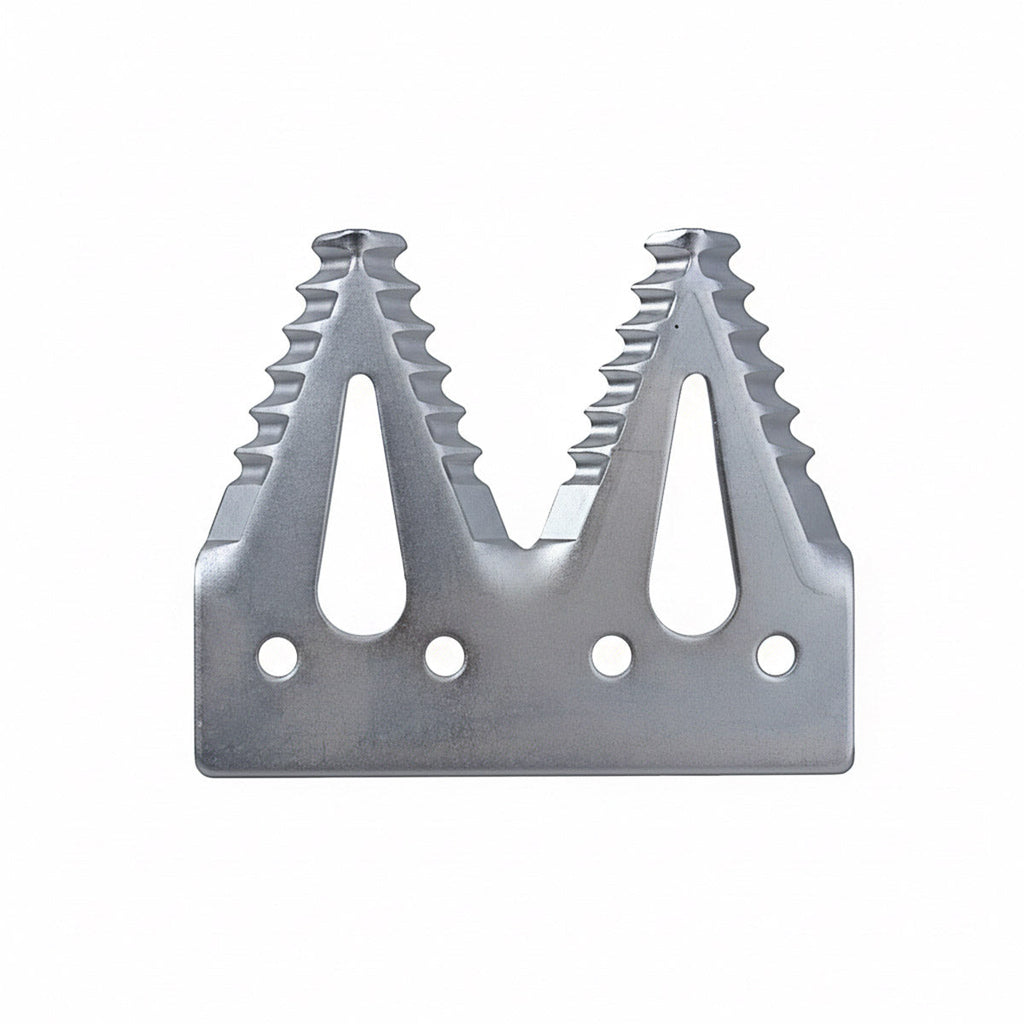

Kondex Megatooth Combine Section for John Deere H163131 - 25-Pack
Product Fitment
| Make | Type | Model |
|---|---|---|
| John Deere | Combine Header | 615F, 615R, 618F, 618R, 620F, 620R, 622F, 622R, 625D, 625F, 625R, 630D, 630F, 630FD, 630R, 635D, 635F, 635FD, 640D, 640FD, 645FD, 725D, 730D, 730FD, 735D, 735FD, 740D, 740FD, 745FD, 925D, 930D, 936D, HD35F, HD35R, HD40F, HD40R, HD45F, HD45R, HD50F, HD50R, RD30F, RD35F, RD40F, RD45F |
Product Specifications
| Brand | Kondex |
|---|---|
| Bolt / Nut Kit | 491-458077 / 458078 / 458079 |
| Fastener Size | M6-1.0 x 16.25mm |
| Hole Spacing | 1 Inch |
| Length | 3-1/4 Inch |
| Section Finish | Plated |
| Section Thickness | Extra Heavy |
| Serration Profile | Top Serrated |
| Serration Spec | MegaTooth - 4 per Inch |
| Shape Series | 17 |
| Width | 4 Inch |
| Heat Treat | Austemper |
| Interchange Numbers | H163131, S20-8531 |
