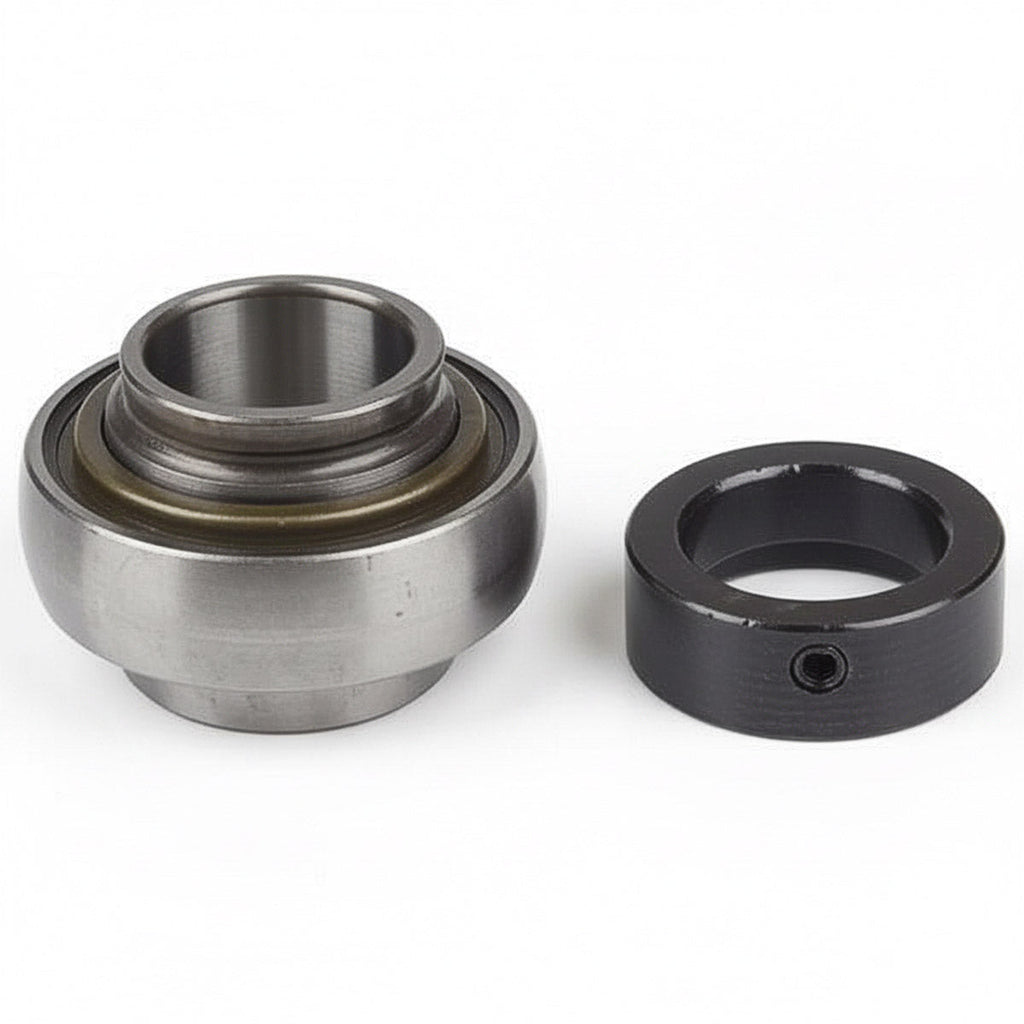

SEALED INSERT BEARING-1" ID- WIDE INNER RING
Product Features
Ball Bearing Insert
Wide Inner Ring - Sealed Standard Industrial / Agricultural Applications
KRRB Series
- Wide Inner Ring with Self Locking Collar
- For extremely dirty or wet conditions
- R-Seals with flared lips firmly contact the ground OD of the inner ring and provide a positive seal against dirt and other contaminants while effectively retaining the lubricant
- Shroud-Seals provide extra effectiveness and protection
- Extra-wide design provides additional shaft support and extra-large grease capacity
- Spherical OD
Product Specifications
| Bearing I.D. | 1" |
|---|---|
| Bearing Type | Insert Bearing |
| Greasable / Sealed | Sealed |
| Inner Race | Wide |
| Outer Race Shape | Spherical |
| Shaft Lock Type | Lock Collar |
| Bearing O.D. | 52mm |
| Bore Shape | Round |
| Basic Outer Ring Size | 205 |
| Inner Ring Width | 1-3/8 Inch |
| Outer Ring Width | .591 Inch |
| Brand | Timken |
| Interchange Numbers | JD9273, WPS100GPC |
