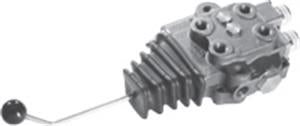

2 SPOOL HYDRAULIC VALVE, OPEN CENTER, WITH JOYSTICK
Product Features
Features:
- 2500 PSI Operating Pressure
- 30 GPM Flow Rate
- First Spool 4-Way 4-Position
- Second Spool 4-Way 3-Position
- Spring Centering
- Adjustable Relief Set at 2000 PSI
- End Ports
- Power-Up / Power-Down
- Handles Included
Product Specifications
| Brand | Cross |
|---|---|
| Handle | Joystick |
| Hydraulic Systems | Open |
| Interchange Numbers | 262-1208 |
| Max Flow | 30 GPM |
| Number of Valve Spools | 2 |
| Outlet Location | End Outlet |
| Port Size | Inlet And Outlet 7/8 Inch Sae # 12, Working Ports 3/4 Inch-16 Sae #8 |
| Power Beyond Port | Conversion Plug |
| Relief Port | Adjustable 1500-2500 PSI (Set At 2000 PSI) |
| Spool 1 Action | 4 Position, Spring Centering To Neutral, Float Position Detent |
| Spool 1 Specification | 4 Way, 4 Position, Open Center, Detent Float Position |
| Spool 2 Action | 3 Position Spring Centered |
| Spool 2 Specification | 4 Way, 3 Position, Open Center |
