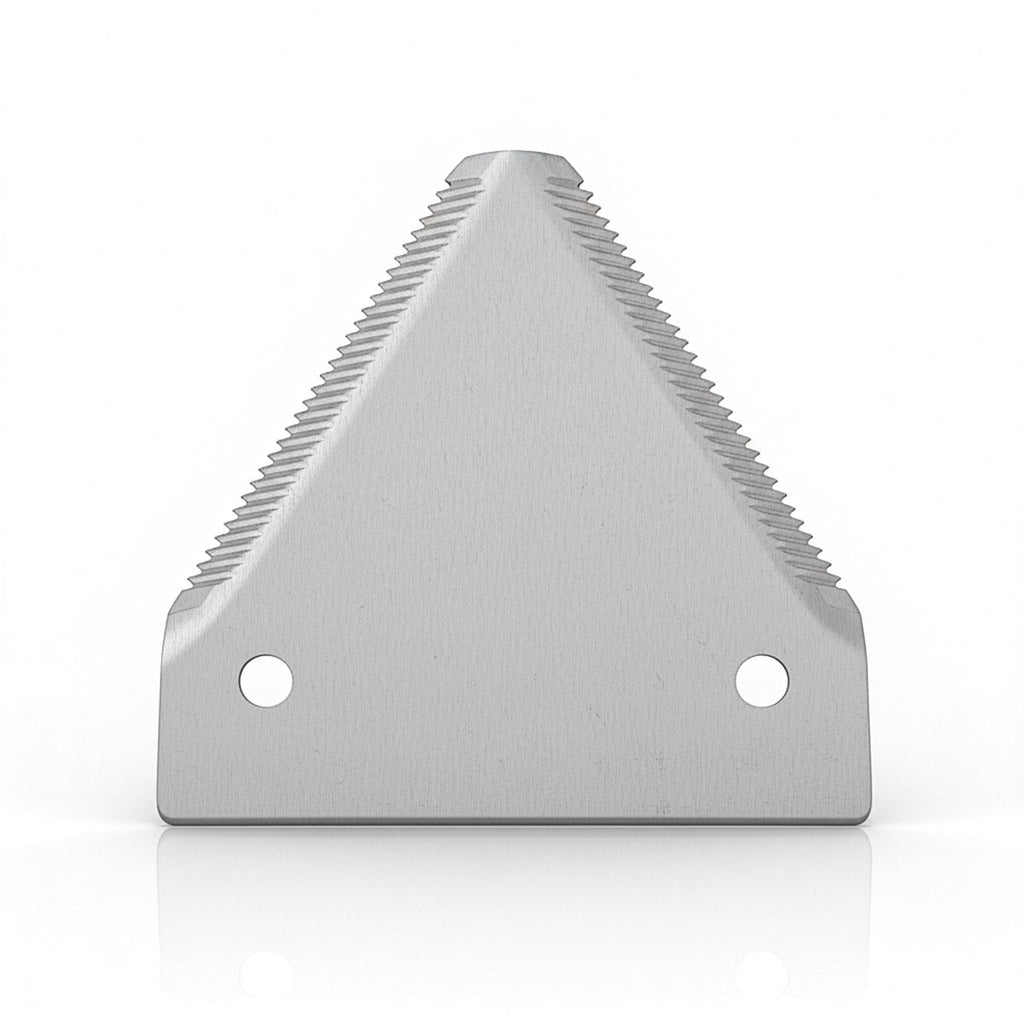

HAY SECTION FOR JOHN DEERE MOWER & WINDROWER - CHROME - TOP SERRATED 14 TOOTH - REPLACES E45996 / E76370
Product Fitment
| Make | Type | Model |
|---|---|---|
| John Deere | Draper Platform | 120, 130, 135, 188, 220, 88 |
| John Deere | Mower Conditioner | 1209, 1214, 480, 483, 485 |
| John Deere | Sickle Mower | 250, 350, 3700, 450, 47, 50 |
| John Deere | Windrow Auger Platform | 230, 240 |
| John Deere | Windrower | 2250, 2270, 2280, 2320, 2420, 780, 800, 830, 880 |
Product Specifications
| Shape Series | 1 |
|---|---|
| Hole Spacing | 2 Inch |
| Length | 3-3/16 Inch |
| Section Finish | Plated |
| Section Thickness | Extra Heavy |
| Serration Profile | Top Serrated |
| Serration Spec | Fine Tooth - 14 per Inch |
| Width | 3 Inch |
| Fastener Size | 7/32" |
| Brand | KONDEX |
| Interchange Numbers | 211-611K, 212-241, 719951, A-212-241, A-212-242, E45996, E76370, E90571, H30171H, S20-4777, TP-E45996, TP-E45996Standard |
