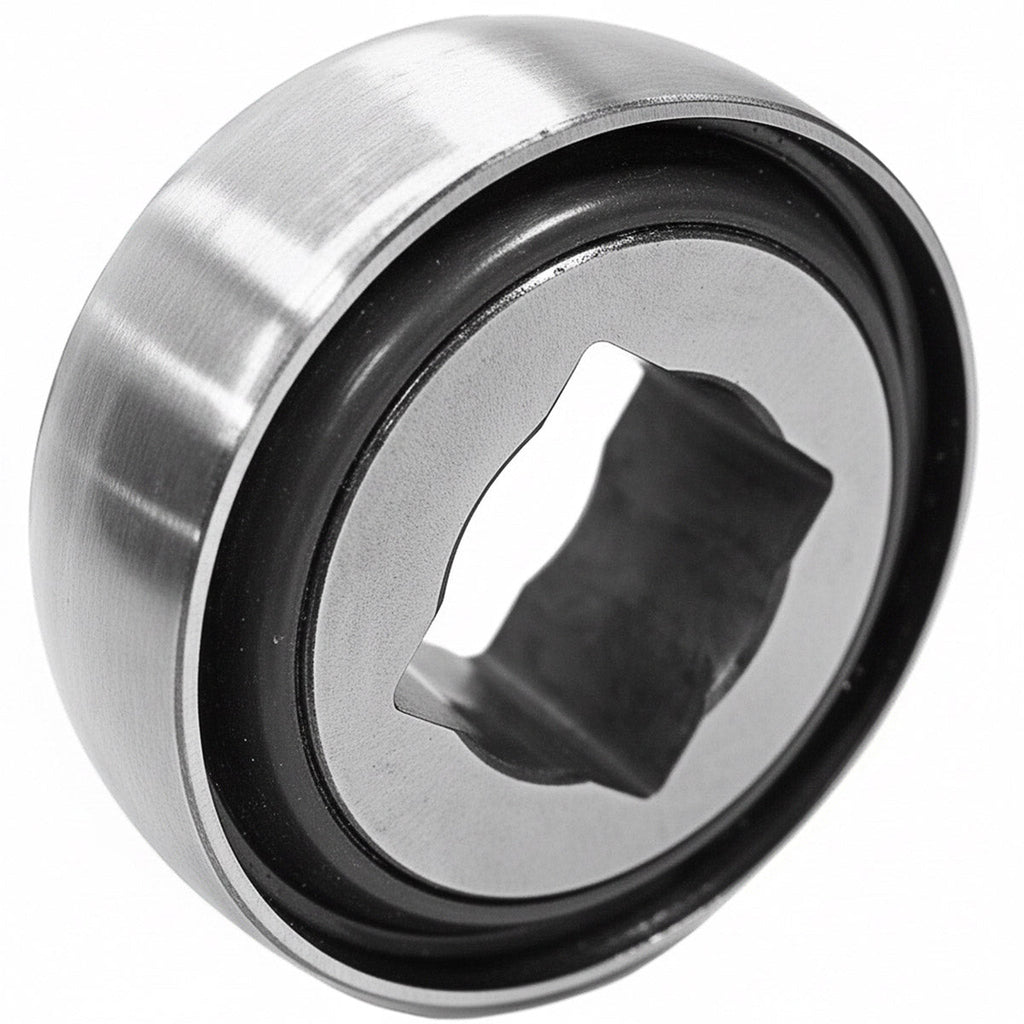

TIMKEN DISC BEARING - 1-1/8" SQUARE

SKU: 308-W208PPB12
Brand: Timken

Replaces DS208TT12. I.H., Long, Kewanee, Taylorway
Price:
$70.44
Stock:
Only 13 units left
Min/Multiple:
1

Product Features

Disc Harrow Bearing

Sealed / Spherical O.D. / Square Bore

  • Designed for environments where severe contamination is present, such as agricultural tillage equipment
  • Use of Tri-Ply Seal bearings simplifes housing designs and their extra inner ring width provides greater support on the shaft

Bearings with Tri-Ply Seals are designed for service involving severe contamination, such as disk harrows, disk tillers and other seed preparation equipment and certain conveyor applications. Tri-Ply sealed units come in two designs – one consisting of three Timken rubber seals separated by steel spacers and retained by steel caps in the outer ring and the other, a highly effective one-piece, molded seal design. Both designs have an exterior shroud cap to protect the seals and reinforce the exceptional sealing action of the complete unit. A patented notched seal groove design, provided on selected sizes, is one of the most positive seal retention methods ever developed.

Product Specifications

Bearing I.D.1-1/8"
Bearing TypeDisc Bearing
Greasable / SealedSealed
Outer Race ShapeSpherical
Bearing O.D.87mm
Bore ShapeSquare
Inner Ring Width1.438 Inch
Outer Ring Width1.188 Inch
BrandTimken
Interchange Numbers 14-24-16, 14-24-36, 142416, 204147, 447899M1, 630964R91, 806523R91, 9-90092, ADS208TT12, AS4508BC, BB2N, DS208TT12, K3316, pricefy.io, T28503, T602
