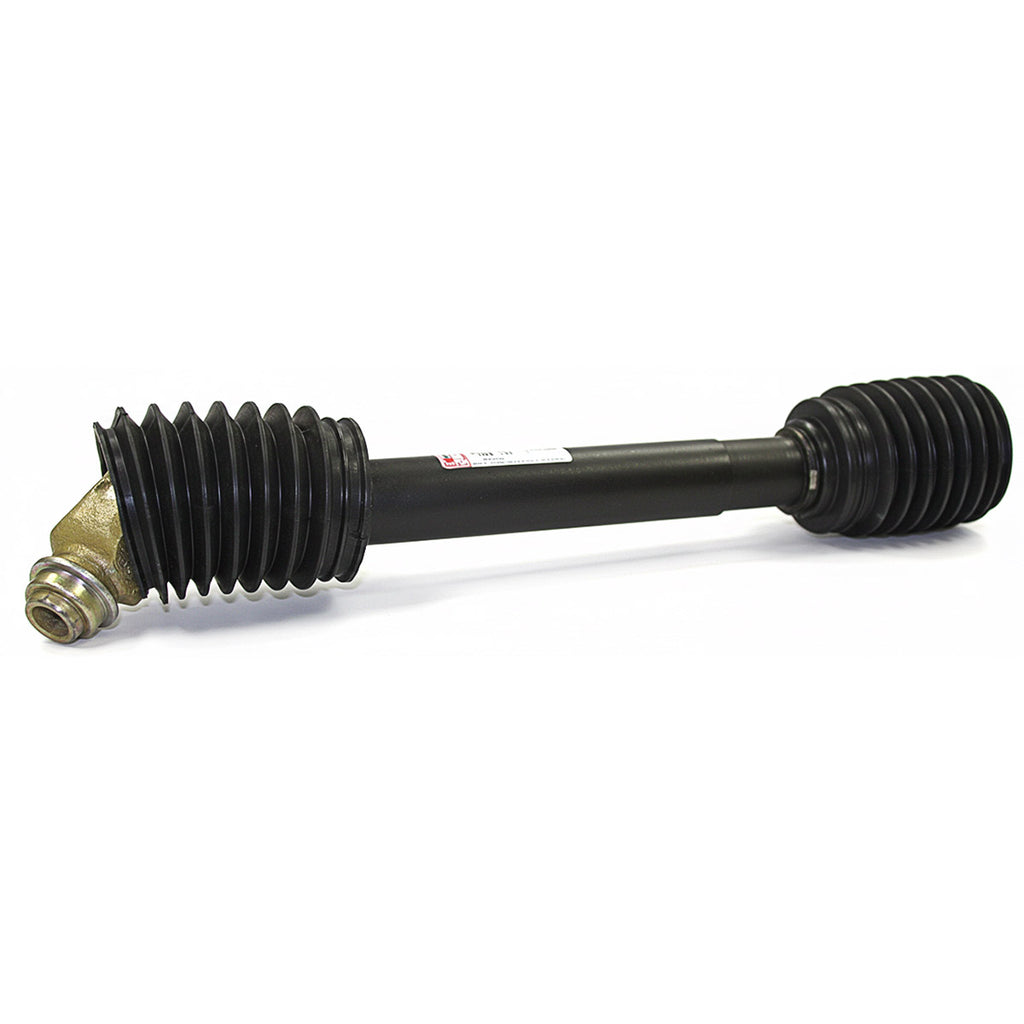

DRIVELINE FOR JOHN DEERE COMBINE HEADER - 2400 SERIES WALTERSCHEID - 35" COMPRESSED LENGTH REPLACES JD # AH220096
Product Fitment
| Make | Type | Model |
|---|---|---|
| John Deere | Combine Header | 453A, 454A, 50A, 653A, 654A, 655A, 853A, 854A, 900, 913, 913F, 913R, 915, 915F, 915R, 916, 916F, 916R, 918, 918F, 918R, 920, 920F, 920R, 922, 922F, 922R, 924, 924F, 924R, 925, 925D, 925F, 925R, 930, 930D, 930F, 930R, 936D |
| John Deere | Corn Head | 1092, 1290, 1291, 1293, 493, 494, 594, 692, 693, 693SH, 694, 892, 893, 90, 90 Series |
Product Features
Weasler Classic Series PTO Drive Shafts
The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries. Weasler PTO driveshafts are complete assemblies from tractor to implement.
They are designed for continuous heavy-duty all-purpose use and meet the requirements of large farms and contractors.
The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
- Chains Included
- Length may need to be modified to fit specific header applications
- Design adjustability (cut-to-length) capabilities.
- Interchangeability to fit with most competitor models.
- Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Product Specifications
| PTO Product Category | Driveshaft |
|---|---|
| PTO Product Sub Category | Complete Drive Shaft |
| Walterscheid Metric PTO Series | 2400 |
| PTO Tubing Shape | Lemon Tube |
| Tractor Yoke Size | 1-3/8" 21 Spline |
| Tractor Yoke Lock Type | Safety Slide Lock |
| Driveshaft Implement End | 1-1/8" Hex Clamp Yoke |
| Driveshaft Application | Combine Header |
| Compressed Overall Length | 35.00 Inches |
| Tractor Yoke Part Number | 101-7621 |
| Implement Yoke Part Number | 807-7648 |
| Cross & Bearing Cap Diameter | 1.26 Inch / 32.00mm |
| Cross & Bearing Overall Length | 3 Inch / 76.00mm |
| Brand | Weasler |
| Interchange Numbers | AH220096, PTOHEADER, SH99125 |
