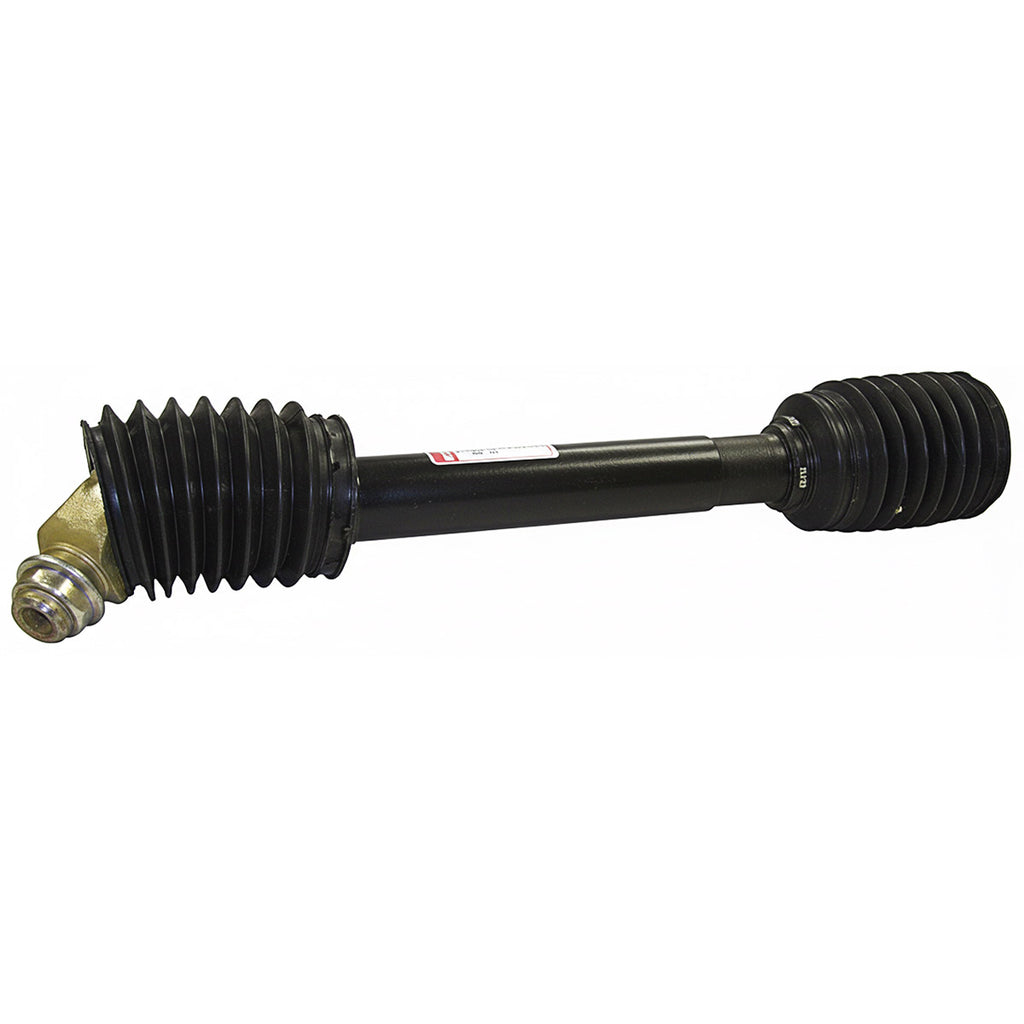

DRIVELINE FOR JOHN DEERE COMBINE HEADER - 2400 SERIES WALTERSCHEID - 31" COMPRESSED LENGTH
%20Driveline%20per%20Header%0D%0A%C2%A0)
Product Fitment
| Make | Type | Model |
|---|---|---|
| John Deere | Combine Header | 615F, 615R, 618R, 620F, 620R, 622F, 622R, 625F, 630F, 630R, 635F, 635R |
Product Features
Weasler Classic Series PTO Drive Shafts
The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries. Weasler PTO driveshafts are complete assemblies from tractor to implement.
They are designed for continuous heavy-duty all-purpose use and meet the requirements of large farms and contractors.
The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
- Chains Included
- Length may need to be modified to fit specific header applications
- Design adjustability (cut-to-length) capabilities.
- Interchangeability to fit with most competitor models.
- Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Product Specifications
| PTO Product Category | Driveshaft |
|---|---|
| PTO Product Sub Category | Complete Drive Shaft |
| Walterscheid Metric PTO Series | 2400 |
| PTO Tubing Shape | Lemon Tube |
| Tractor Yoke Size | 1-3/8" 21 Spline |
| Tractor Yoke Lock Type | Safety Slide Lock |
| Driveshaft Implement End | 1-1/8" Hex Clamp Yoke |
| Driveshaft Application | Combine Header |
| Compressed Overall Length | 31.00 Inches |
| Tractor Yoke Part Number | 101-7621 |
| Implement Yoke Part Number | 807-7648 |
| Cross & Bearing Cap Diameter | 1.26 Inch / 32.00mm |
| Cross & Bearing Overall Length | 3 Inch / 76.00mm |
| Brand | Weasler |
| Interchange Numbers | AH220093 |
