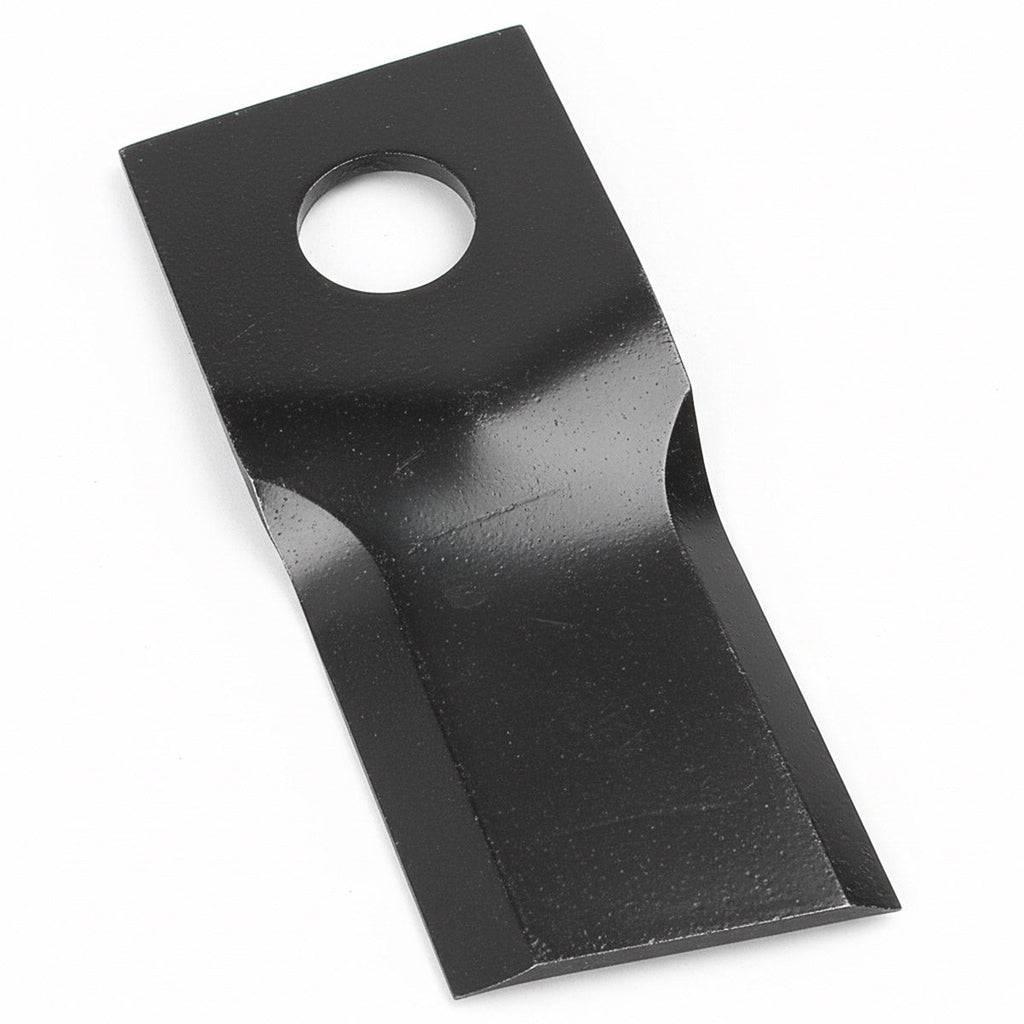

DISC MOWER DRUM KNIFE FOR HEAVY DUTY KUHN / NEW HOLLAND - RIGHT HAND - REPLACES 564.513.00 / 7842201 11° TWIST
Product Fitment
| Make | Type | Model |
|---|---|---|
| Gehl | Disc Mower | 162, 162HD, 165, 2340, 2360, DC2340, DC2360 |
| John Deere | Disc Mower | 1320, 1326, 1327, 265, 275, 285, R160, R240, R280, R310 |
| Kuhn | Disc Mower | GMD16HD, GMD20HD, GMD240HD, GMD280HD, GMD310HD, GMD400HD, GMD44HD, GMD500HD, GMD500SHD, GMD55HD, GMD600GII HD, GMD600HD, GMD66HD, GMD700GII HD, GMD700HD, GMD77HD, GMD800GII HD, GMD800HD |
| Kuhn | Mower Conditioner | FC243RGII HD |
| New Holland | Disc Mower | 442, 452, 462, 463 |
| Rhino | Disc Mower | HC501, HC601, HC701, HC801 |
Product Specifications
| Bolt / Nut Kit | RF56162 for Kuhn / New Holland / Gehl |
|---|---|
| Bolt Hole Size | 0.728 Inches, 18.5 mm |
| Length | 4.8 Inches, 123 mm |
| Shape | 9 |
| Thickness | 0.16 Inches, 4.0 mm |
| Twist Degree | 11 Degree |
| Width | 1.9 Inches, 48 mm |
| Pair | 798-RM4512 |
| Brand | KONDEX |
| Rotation | Clockwise ( Right Hand ) |
| Interchange Numbers | 00772646, 125446, 564-513-00, 56451300, 564513005, 784221, 80784221, CC21781, CC44004, TP-CC21781RH |
