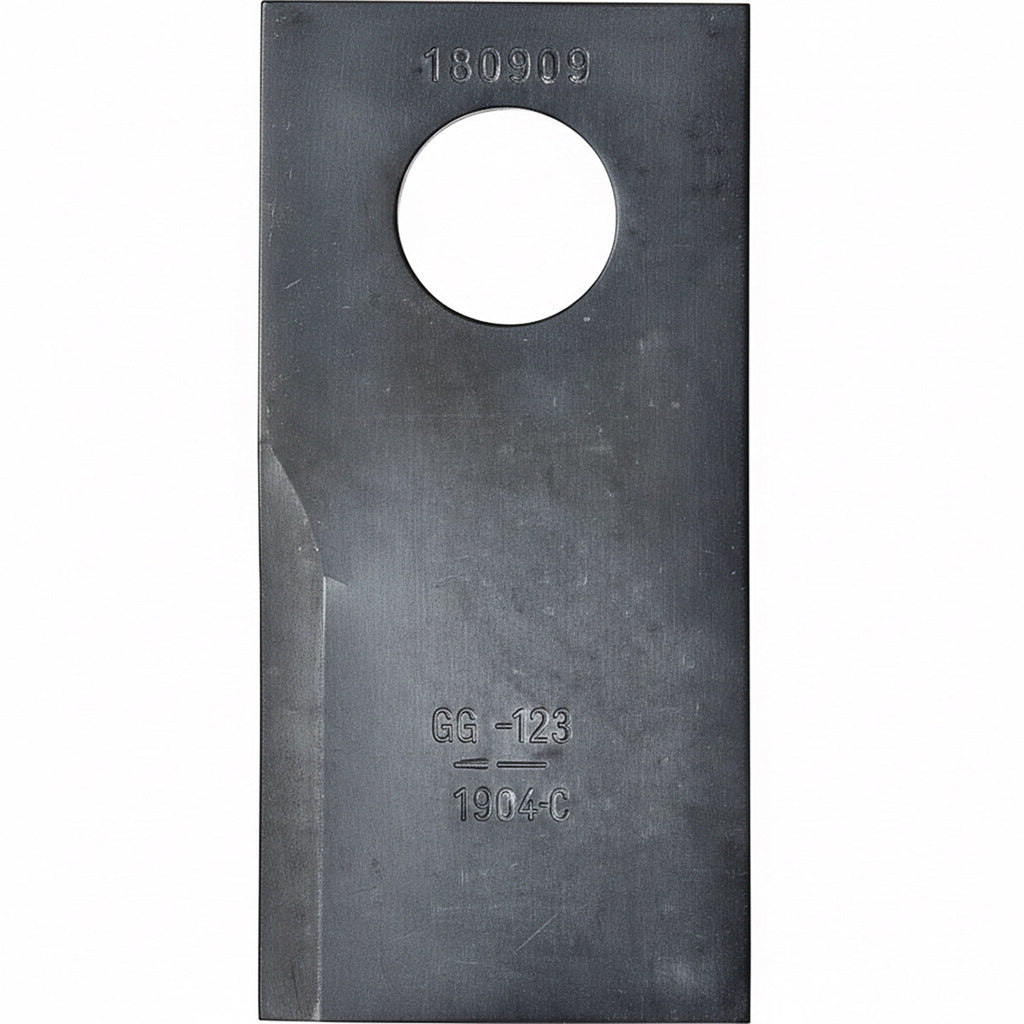

DISC MOWER DRUM KNIFE FOR CASE IH / NEW HOLLAND RIGHT HAND - REPLACES 9847683 - 7° TWIST 6 PACK
Product Fitment
| Make | Type | Model |
|---|---|---|
| Case IH | Disc Mower | 3309HD, DC132, DC132F, DC162, DC162F, DC92, DC92F, DCX101, DCX131, DCX131F, DCX161, DCX91, MD72, MD82, MD92, MDX71, MDX81, MDX91, RD132, RD162, RD182, RDX131, RDX161, RDX181, TD102 |
| New Holland | Disc Header | 2331, 2332, 2353, 2355, 2358 |
| New Holland | Disc Mower | 1409, 1410, 1411, 1412, 1431, 1432, 1441, 1442, 232, 615, 616, 617, 720HD, 720TD, 750HD, 820TD, H6730, H6740, H6750, H6830, H7220, H7230, H7320, H7330 |
Product Specifications
| Bolt / Nut Kit | RF925K for Case IH / New Holland |
|---|---|
| Bolt Hole Size | 0.889 Inches, 22.6 mm |
| Length | 4.3 Inches, 110 mm |
| Shape | 10 |
| Thickness | 0.16 Inches, 4.0 mm |
| Width | 2.0 Inches, 51 mm |
| Twist Degree | 7 Degree |
| Pair | 798-RM684-6 |
| Brand | KONDEX |
| Rotation | Clockwise ( Right Hand ) |
| Interchange Numbers | 9847683, 9847683-6, B45-6720D, D21-192 |
