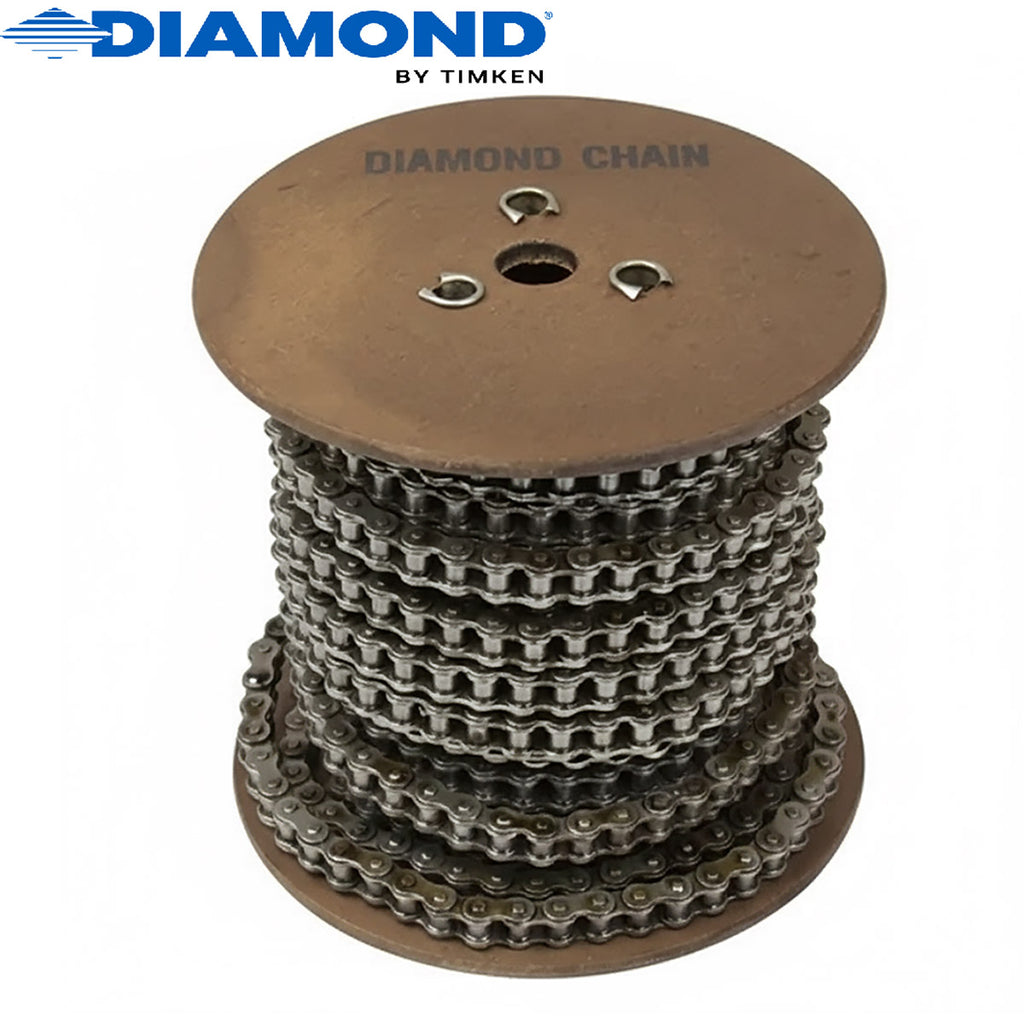

Diamond Roller Chain - #2050 Double Pitch x 50' Reel, priced per foot
Product Features
Nothing Outlasts a Diamond®
Longer lasting chain results in less downtime and better return on investment
Double Pitch Power Transmission Series - Single Strand
It is evident that a Diamond Series roller chain is different the moment it is removed from the box. The uniquely beveled linkplates (sizes 60-160) and proprietary lubrication are easily identified, but the real value of these features - and all the features that comprise “The Diamond Difference” are not just seen but experienced. Diamond Series chain has been verified to deliver superior wear life vs. the competition.
Double Pitch Power Transmission roller chain utilizes figure eight style linkplates with a pitch twice that of the standard series chains. Typical uses for these chains include low speed / light load drives such as those in agricultural applications.
Product Specifications
| Chain Size | 2050 |
|---|---|
| Chain Category | Roller Chain |
| Strands | Single |
| Link Plate | Standard |
| Pitch - Inches | 1-1/4 Inch |
| Roller Width | 3/8 Inch |
| Overall Width | 0.83 |
| Roller Diameter | 0.4 |
| Pin Diameter | 0.2 |
| Material | Carbon Steel |
| Package | 50 Foot Reel |
| Brand | Diamond |
| Interchange Numbers | A2050R50D, ARC2050X50 |
