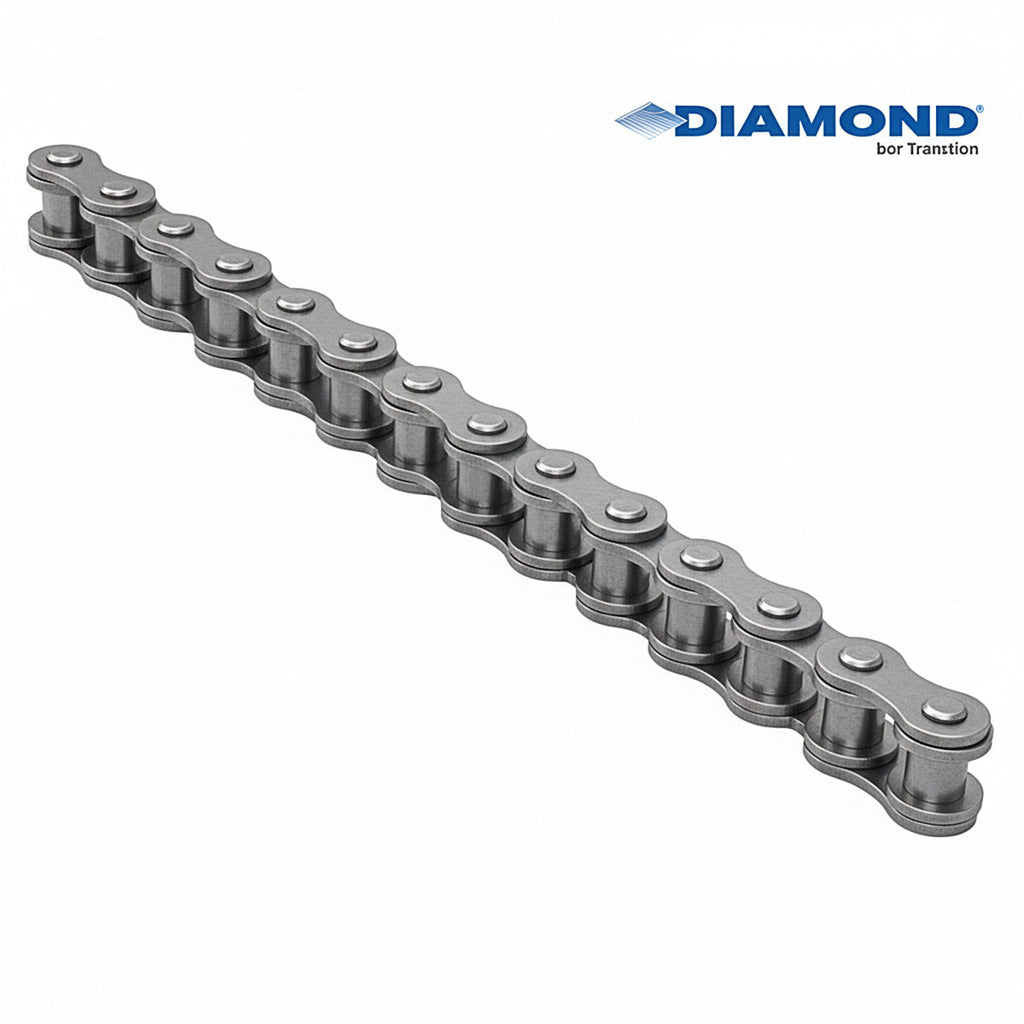

Diamond Roller Chain - #120 x 10' Box, priced per foot
Product Features
Nothing Outlasts a Diamond® by Timken
Longer lasting chain results in less downtime and better return on investment
Standard Duty Series - Single Strand and Multiple Strand
It is evident that a Diamond Series roller chain is different the moment it is removed from the box. The uniquely beveled linkplates (sizes 60-160) and proprietary lubrication are easily identified, but the real value of these features - and all the features that comprise “The Diamond Difference” are not just seen but experienced. Diamond Series chain has been verified to deliver superior wear life vs. the competition.
Built to ASME / ANSI B29.1 standards for dimensions, interoperability, and sprocket fit, the ASME / ANSI Standard Roller Chain series also meets Diamond Chain’s rigorous internal requirements. From industry to agriculture, our Standard Series chains are designed to fit a wide variety of standard applications, and to last longer than any other manufacturer’s chain.
Product Specifications
| Material | Carbon Steel |
|---|---|
| Chain Category | Roller Chain |
| Package | 10 Foot Box |
| Chain Size | 120 |
| Link Plate | Standard |
| Overall Width | 1.955 |
| Pin Diameter | 0.437 |
| Pitch - Inches | 1-1/2 Inch |
| Roller Diameter | 0.875 |
| Roller Width | 1 Inch |
| Strands | Single |
| Brand | Diamond |
| Interchange Numbers | 120R10D, ARC120, ARC120DS |
