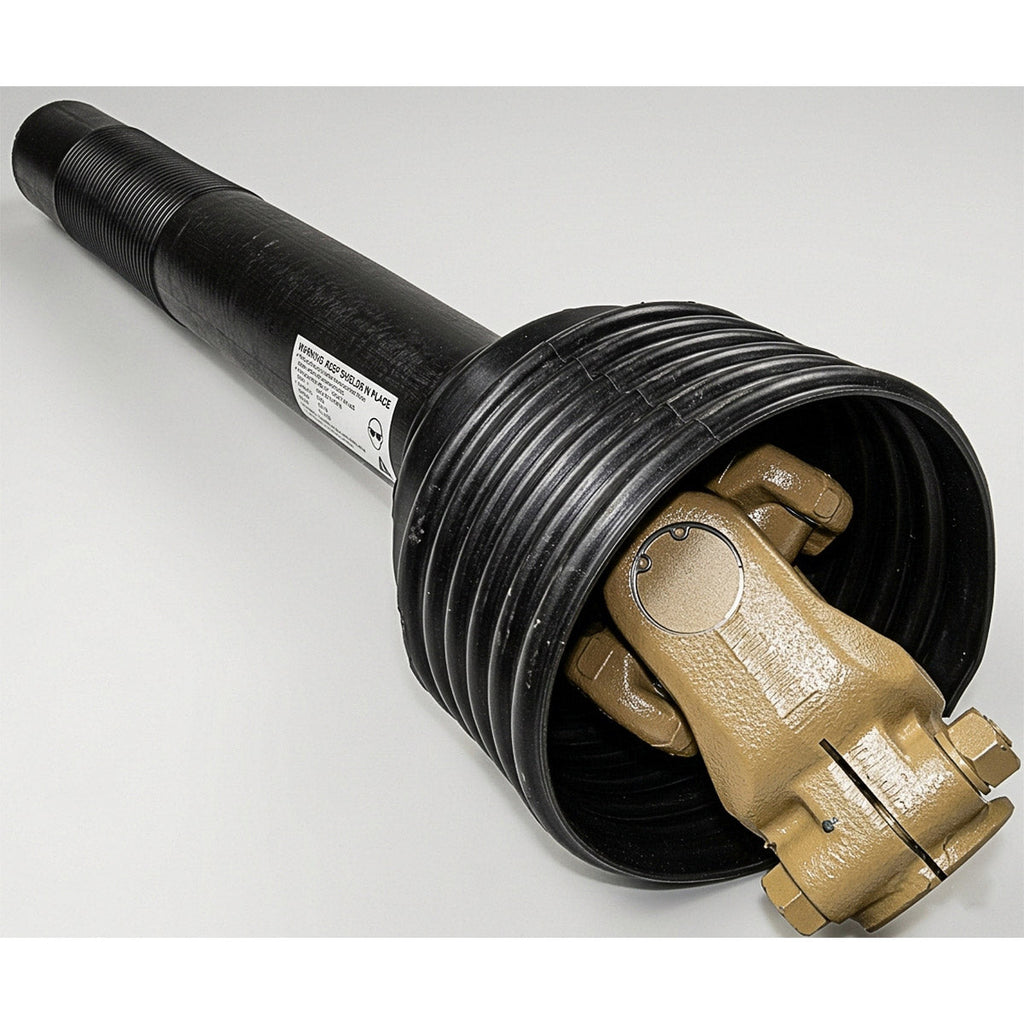

CV IMPLEMENT HALF SHAFT FOR SERVIS-RHINO MOWER - WALTERSCHEID 2580 STAR TUBING - CV CAT 6
Product Fitment
| Make | Type | Model |
|---|---|---|
| Rhino | Rotary Cutter | FL14, FL20, Flex 10, Flex 15, FR10, FR15, SE15-4A, SR10, SR10M, SR14, SR15, SR15M, SR20 |
Product Features
Category 6 CV Implement Side Half Shaft - 2500 Waltersheid Series
Fits Servis-Rhino Flex Wing Mowers
Product Specifications
| PTO Product Category | Driveshaft |
|---|---|
| PTO Product Sub Category | CV Half Shaft |
| Walterscheid Metric PTO Series | 2580 |
| CV Category | Cat 6 |
| PTO Tubing Shape | Star Tube |
| Driveshaft Implement End | 1-3/4"-20 Spline Clamp Yoke |
| Driveshaft Application | Flex Wing Mower |
| Compressed Overall Length | 30.75 Inches |
| Implement Yoke Part Number | 807-7920 |
| Tube or Shaft Size | 61.00 MM Tube |
| Cross & Bearing Cap Diameter | 1.38 Inch / 34.90mm |
| Cross & Bearing Overall Length | 4.20 Inch / 106.50 mm |
| Brand | Weasler |
| Interchange Numbers | 00760667, 92-14506851, 92-14507951, 9214507951 |
