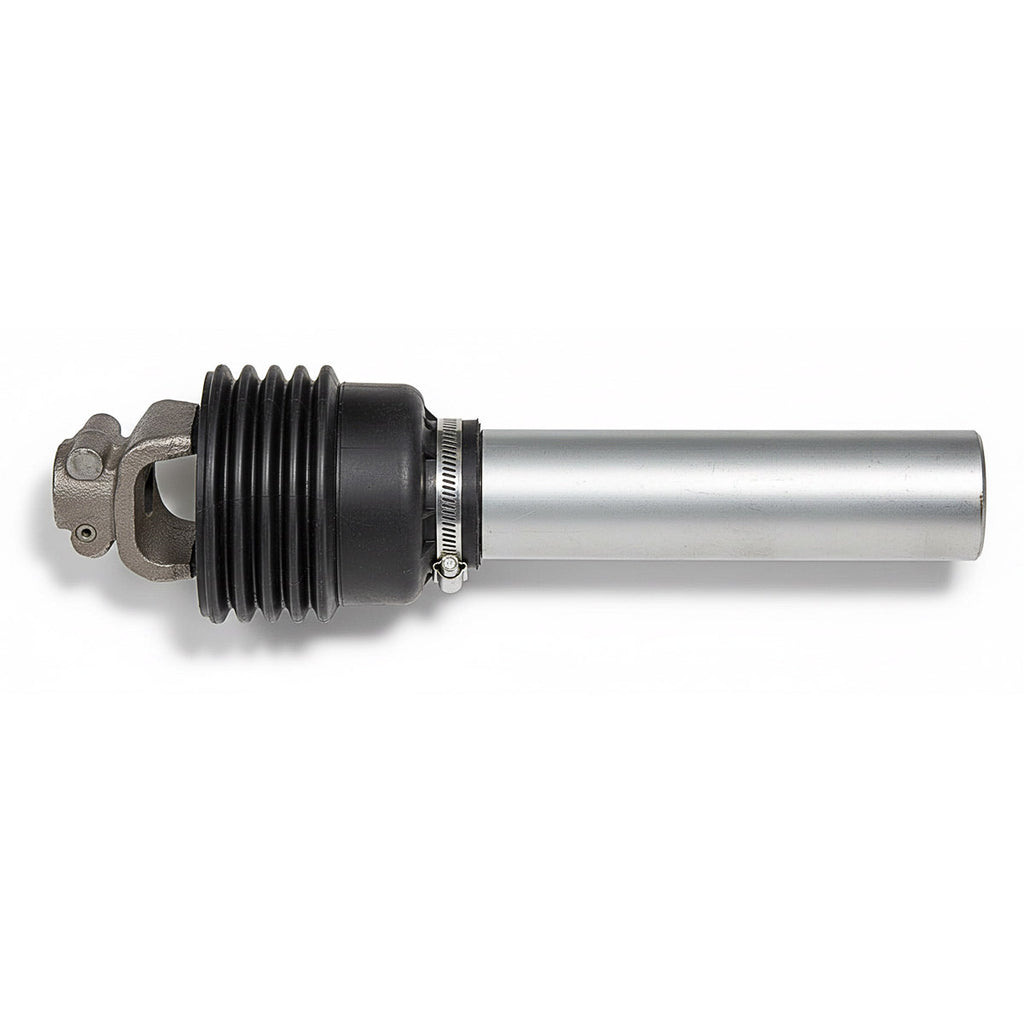

CV IMPLEMENT HALF SHAFT - CV CAT 6 WALTERSCHEID 2580 STAR TUBING - HAS 1-3/8 X 6 SPILNE CLAMP YOKE
Product Features
Features:
- Direct Replacement – Standard Lengths & Series.
- Star Profile Telescoping Members for Better Thrust Handling.
- Patented Easy Lock™ Guard System.
Product Specifications
| PTO Product Category | Driveshaft |
|---|---|
| PTO Product Sub Category | CV Half Shaft |
| Walterscheid Metric PTO Series | 2580 |
| CV Category | Cat 6 |
| PTO Tubing Shape | Star Tube |
| Driveshaft Implement End | 1-3/8" - 6 Spline Clamp Yoke |
| Compressed Overall Length | 34.625 Inches |
| Driveshaft Application | All Purpose |
| Implement Yoke Part Number | 807-7906 |
| Tube or Shaft Size | 61.00 MM Tube |
| Cross & Bearing Cap Diameter | 1.38 Inch / 34.90mm |
| Cross & Bearing Overall Length | 4.20 Inch / 106.50 mm |
| Brand | Weasler |
| Interchange Numbers | 92-14506855, 92-14506855SSL, 92-14507955, 9214506855SSL, 9214507955, 971-9214507955, AW2580MA121001A, WS80556CS |
