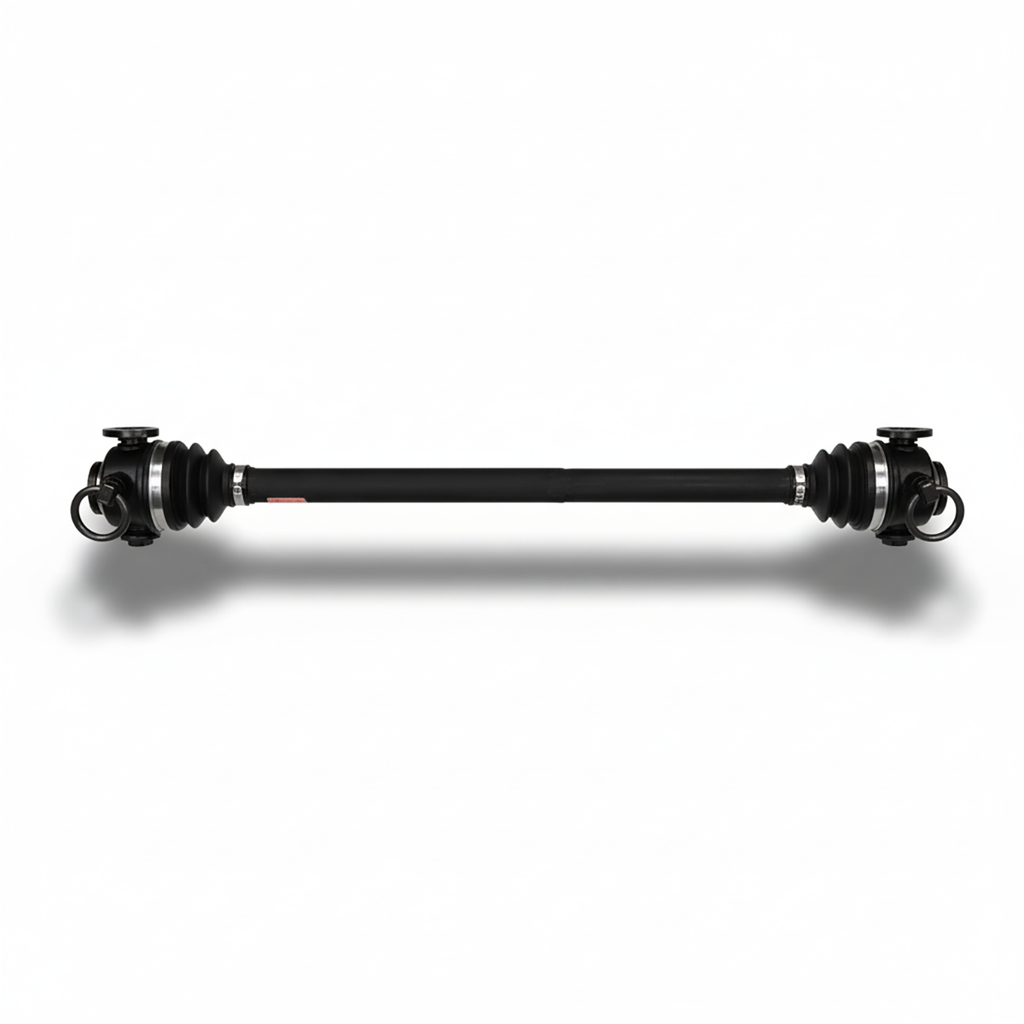

CV DRIVELINE FOR CASE IH / NEW HOLLAND MOWER CONDITIONER SECONDARY SHAFT 78" OVERALL LENGTH
Product Fitment
| Make | Type | Model |
|---|---|---|
| Case IH | Disc Mower | DC102, DC103 |
| New Holland | Disc Mower | 1411, 1412, 210, H7230, H7330 |
Product Features
Category 6 Double CV Drive Shaft With Free Motion Clutch
Fits Case IH / New Holland Mower Conditioners
Models with Standard Tongue - Models 210 DC102 DC103 H7230 H7330 1411 1412
The Weasler high performance CV Wide Angle PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
- Weasler E-Kit with Extended Lubrication Cycle
- TorqMaster Overrunning Friciton Clutch
- Visual Wear Indicator Shows Clutch Disc Life
- Unique Spring Maintains Torque level throughout the life of the friction disc
- Housing desinged to Effeciently dissipate Heat and Extend Life
- 50° CV Joint
Product Specifications
| Clutch Torque Rating | 12,000 in/lbs |
|---|---|
| Compressed Overall Length | 78.00 Inches |
| CV Angle | 50 Degree |
| CV Category | Cat 6 |
| Driveshaft Application | Mower Conditioner |
| Driveshaft Implement End | 1-3/8" - 21 Spline Friction Clutch |
| Implement Yoke Part Number | 38-60222 |
| North American PTO Series | 55 |
| PTO Product Category | Driveshaft |
| PTO Product Sub Category | CV Complete Drive Shaft |
| PTO Tubing Shape | Splined Shafting |
| Tractor Yoke Lock Type | Clamp Yoke |
| Tractor Yoke Part Number | 807-5521 |
| Implement Yoke Size | 1-3/8" 21 Spline Friction Clutch |
| Tractor Yoke Size | 1-3/8" 21 Spline |
| Cross & Bearing Cap Diameter | 1-17/32 Inch / 38.86mm |
| Cross & Bearing Overall Length | 4-5/16 Inch / 109.55mm |
| Brand | Weasler |
| Interchange Numbers | 47448928, 47448929, 47802167, 47802168 |
