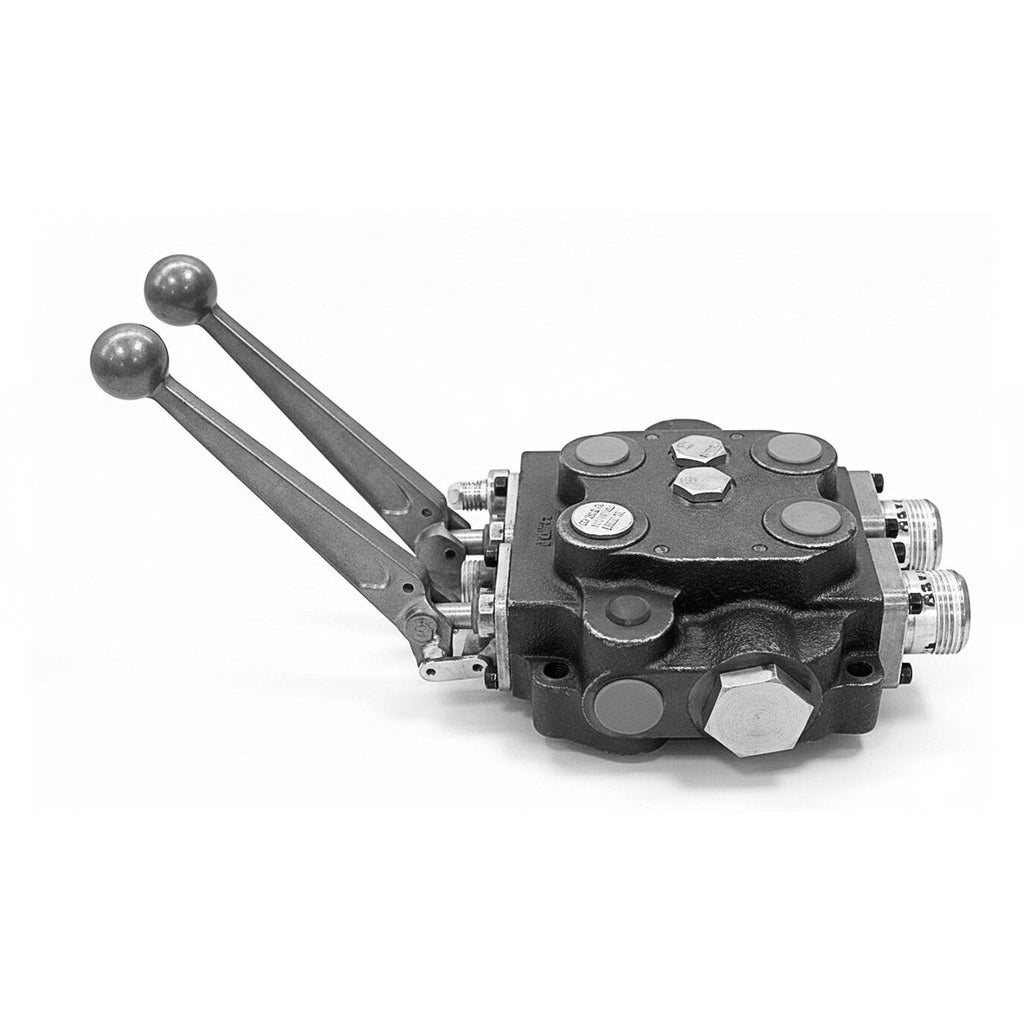

Cross 138650 Hydraulic Directional Control Valve - 2 Spool, Closed Center
Product Specifications
| Number of Valve Spools | 2 |
|---|---|
| Hydraulic Systems | Closed |
| Max Flow | 30 GPM |
| Spool 1 Specification | 4 Way, 3 Position |
| Spool 1 Action | 3 Position Spring Centered |
| Spool 2 Specification | 4 Way, 3 Position |
| Spool 2 Action | 3 Position Spring Centered |
| Relief Port | No Relief Port |
| Power Beyond Port | Closed Center Plug |
| Outlet Location | End Outlet |
| Port Size | Inlet And Outlet 3/4 Inch Nptf, Working Ports 1/2 Inch Nptf |
| Handle | Comes With Handles |
| Brand | Cross |
| Interchange Numbers | 196-138663, 262-1159, ASBA22CC, SBA-22CC, SBA22CC |
