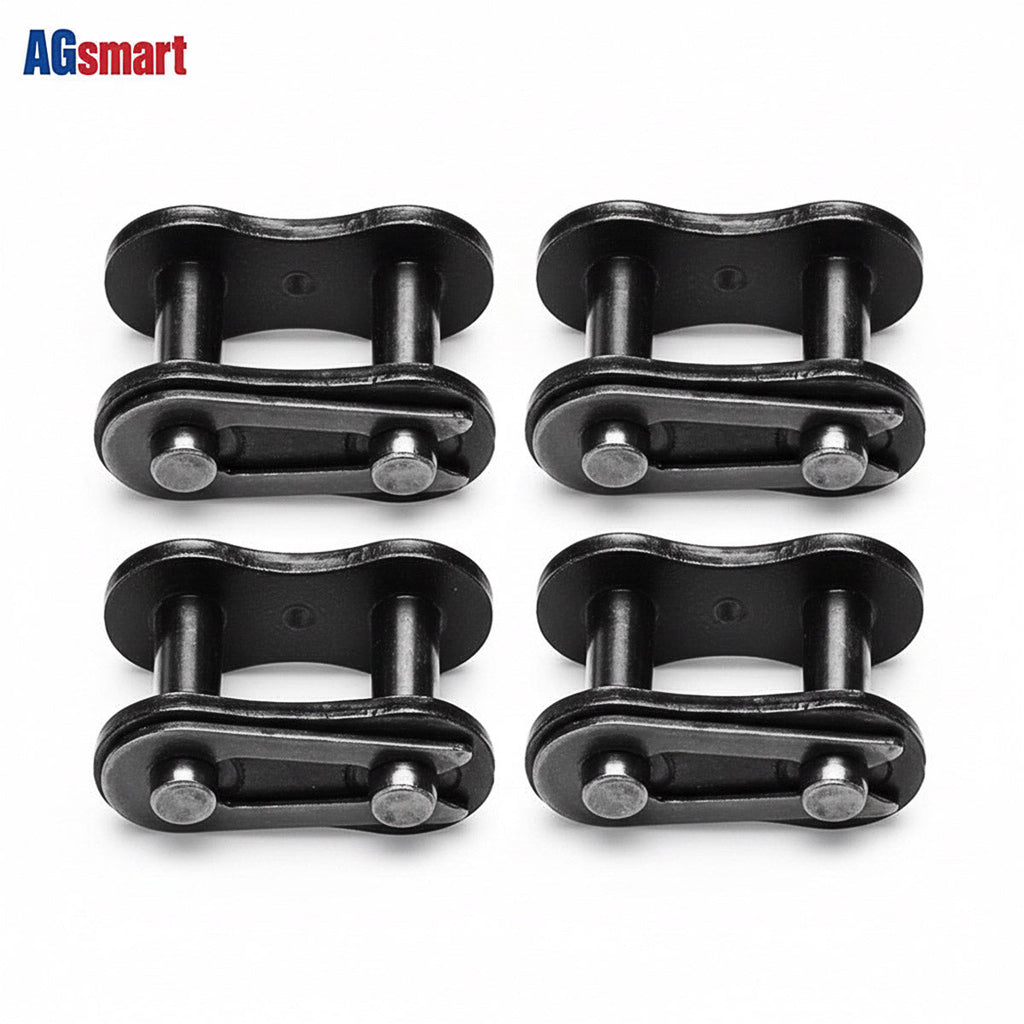

AgSmart Roller Chain Connecting Link - #A2040 Single Strand, Double Pitch, 4-Pack
Product Features
AgSmart Roller Chain
Keeping your Equipment Running
Spring Clip Connecting Link
Standard connecting link for up to ANSI 80 chain. The cover linkplate is held in place by a spring clip, split at one end to permit easy installation and removal. Slip fit cover plate standard, press fit cover plate optional and recommended for heavy duty applications.
Product Specifications
| Chain Size | 2040 |
|---|---|
| Chain Category | Connecting Link |
| Strands | Single |
| Link Plate | Standard |
| Pitch - Inches | 1 Inch |
| Roller Width | 5/16 Inch |
| Overall Width | 0.67 |
| Roller Diameter | 0.312 |
| Pin Diameter | 0.156 |
| Material | Carbon Steel |
| Brand | AgSmart |
| Interchange Numbers | 1277927C91, 202-2040, 2040CL, 457113R91, 80025813, 86595261, 87780503, 89828102, 9828102, A2040CL, A2040CL4, ACL2040IMP, B12514, CS-4487066CL-00, S2040 |
