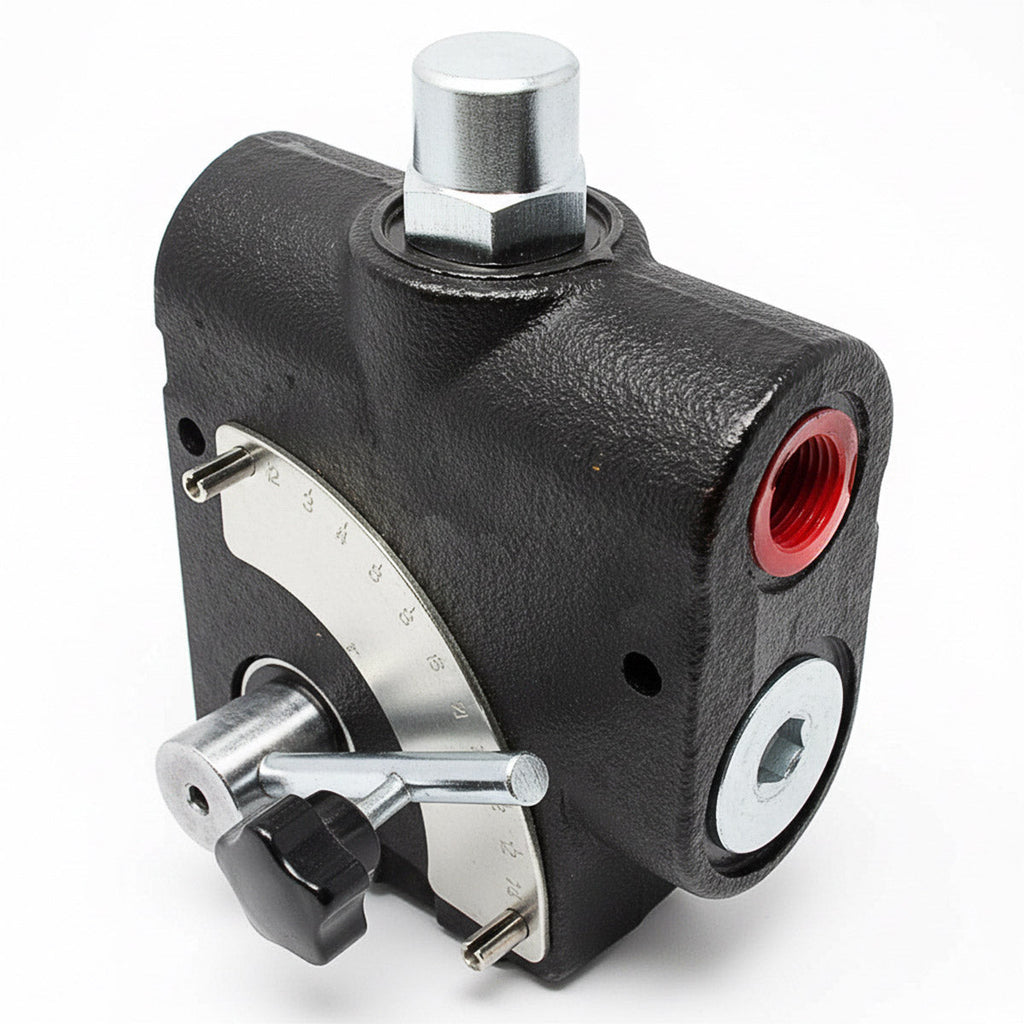

AgSmart Hydraulic Flow Control Valve - 3/4" NPT Ports, 0 -30 GPM Range, with Relief
Product Features
AgSmart Flow Control Valves
Dependably adjust and maintain a constant flow downstream from the valve with SMA AgSmart hydraulic flow control valves. Using the lever and locking knob located on the front of the valve, operators adjust the relative flow to match their workload, not their workload to the valve's capacity. A built-in compensator maintains the flow rate, adjusting for fluctuating pressures downstream.
The flow control valve with a built-in relief can further regulate the system pressure by opening at an adjustable pressure setting (field adjustable).
Perfect for fertilizer spreaders, grain handling augers, fan speed controls, & more!
Product Specifications
| Flow Range | 0-30 GPM |
|---|---|
| Port Size | 3/4 Inch NPT |
| Brand | AgSmart |
| Relief Option | Yes |
| Relief Setting | 2250 PSI Adjustable |
| Max PSI | 3000 PSI |
