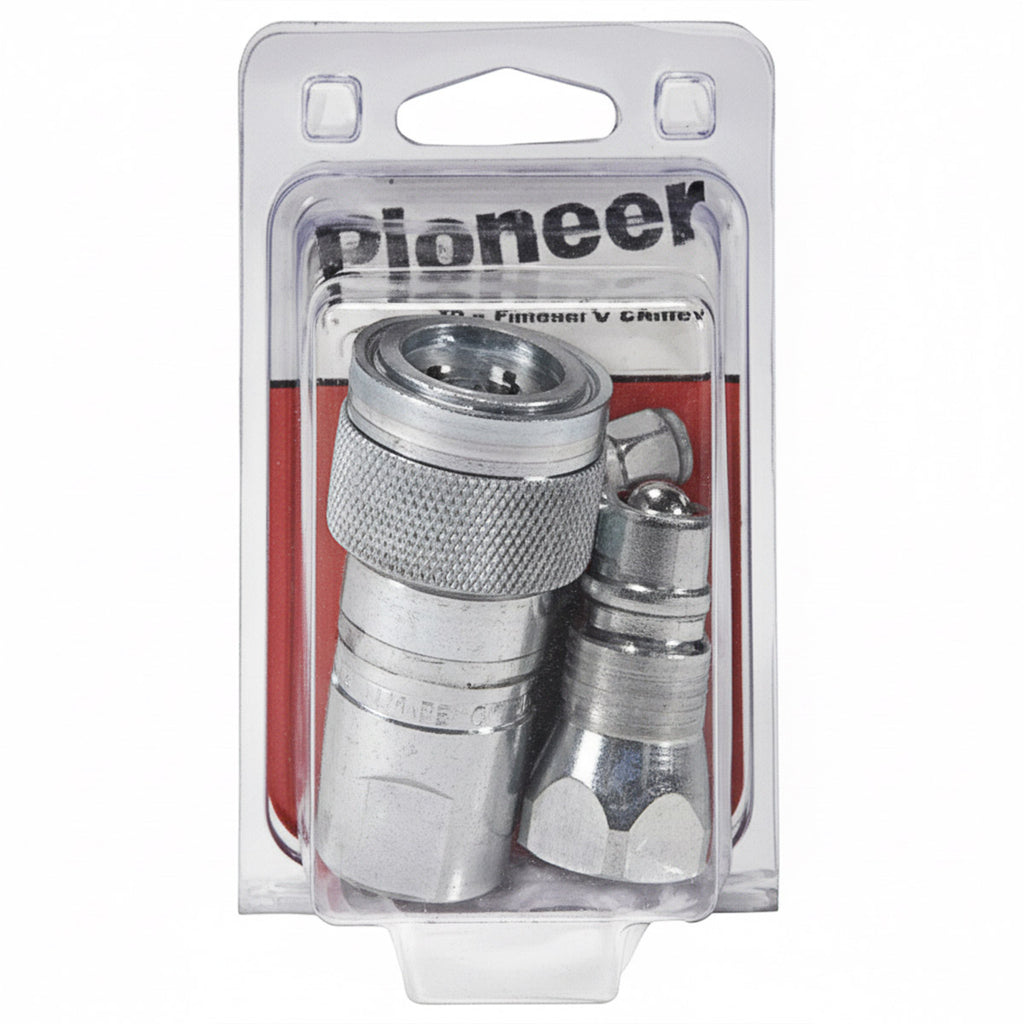

4000 SERIES QUICK COUPLER WITH TIP - 1/2" BODY x 7/8-14 ORB THREADS - VISI-PACK CLAMSHELL
Rated 5.0 out of 5 stars
1 Review
Product Features
4000 Series - Manual Sleeve Design
Complete Coupler
The 4000 Series brings to the industry a proven design for use on agricultural machinery and other rugged applications.
Protective dust plugs and caps play a crucial role in the life of a quick coupling and no purchase of a hydraulic quick coupling is complete without the selection of an appropriate dust plug and cap
- Accepts ISO 5675 Standard universal tips
- Basic operation where coupler sleeve is manually retracted to allow connection with male tip
- Critical parts are induction hardened
- Ball and poppet valve options
- Protective zinc plating with clear trivalent chromate finish
Product Specifications
| Ball or Poppet Valve | Ball |
|---|---|
| Connect Under Pressure | No |
| Coupler Body / Coupler Tip | 4050-16 / 8010-16 |
| Coupler Body Size | 1/2 Inch |
| Coupler Clamp Series | Not Available |
| Dust Cap Series | 5209-4M Series |
| Dust Plug Series | 5205-4M Series |
| Largest Diameter | 1.50 Inch |
| Max PSI | 3000 PSI |
| Package Type | Visi-Pack Clamshell |
| Rated Flow | 12 GPM |
| Sleeve Operation | Manual Connect |
| Thread Size | 7/8-14 ORB |
| Wrench Flats | 1-1/16 Inch |
| Brand | Pioneer |
| Interchange Numbers | 4000-16, VP400016 |
