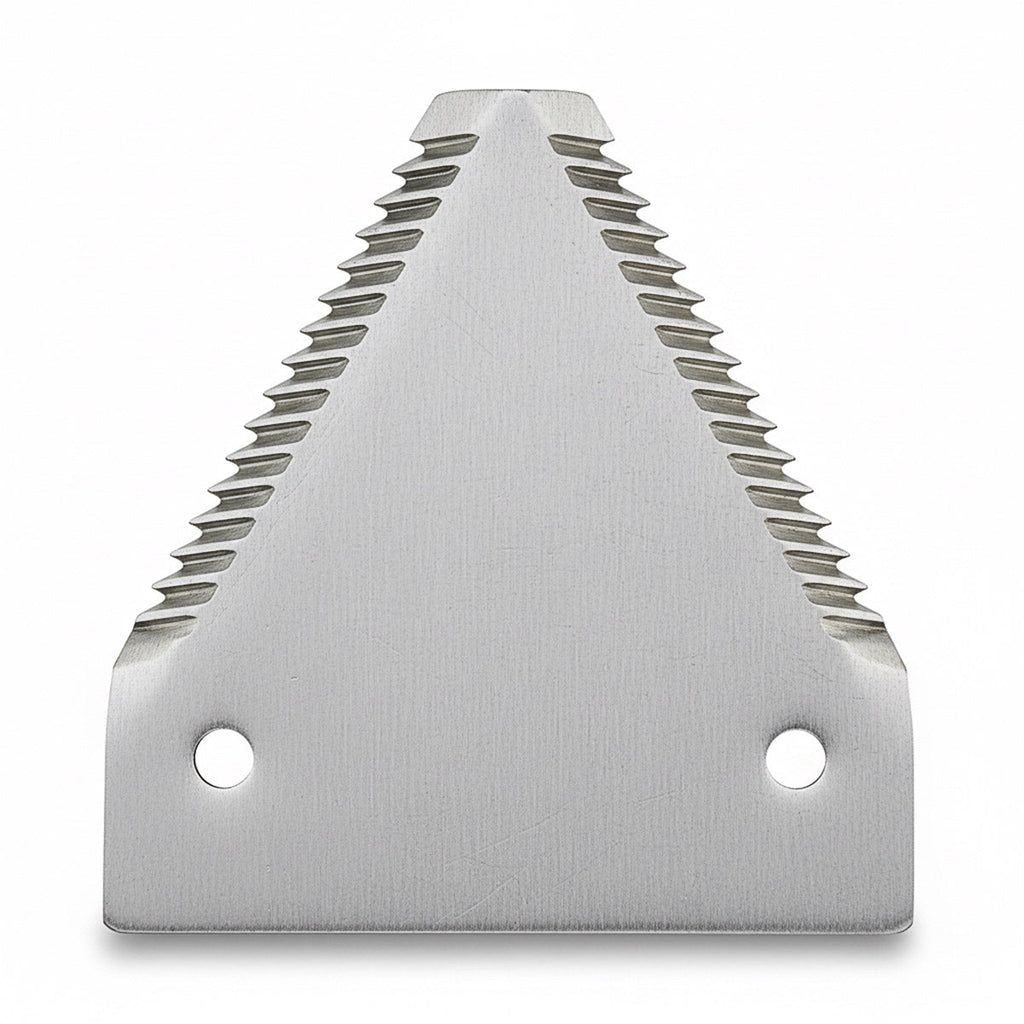

3" PLATED COMBINE AND HAY SECTION FOR CASE IH, NEW HOLLAND, AGCO, EXTRA COARSE 7 TOOTH REPLACES 86616689, 191256A1, 700705300
Product Fitment
| Make | Type | Model |
|---|---|---|
| Case IH | Combine Header | 1010, 1020, 2010, 2020, 820 |
| Case IH | Windrower | 1075, 1275, 4000, 5000, 5500, 8360, 8370, 8380, 8820, 8830, 8840, 8870 |
| Hesston | Mower Conditioner | 1070, 1071, 1085, 1090, 1091, 1095 |
| Hesston | Windrower | 1014, 1170, 1260, 1265, 1270, 1275, 520, 620, 6200, 6400, 6450, 6465, 65, 6550, 6566, 6600, 6610, 6650, 6665, 6666, 8100, 8200, 8400, 8600 |
| Massey Ferguson | Windrower | 885 |
| New Holland | Combine Header | 71C, 72C, 73C, 74C |
| New Holland | Mower Conditioner | 1495, 495 |
| New Holland | Windrower | 1100, 1112, 1114, 1116, 1118, 116 |
Product Specifications
| Hole Spacing | 2.063 Inch |
|---|---|
| Length | 3-1/4 Inch |
| Width | 3 Inch |
| Section Finish | Plated |
| Section Thickness | Extra Heavy |
| Serration Spec | Extra Coarse - 7 Tooth |
| Fastener Size | 7/32" |
| Serration Profile | Top Serrated |
| Shape Series | 2 |
| Brand | KONDEX |
| Interchange Numbers | 102053, 191256A1, 191256B, 191256H, 191256P, 231-461, 232-461, 47678533, 491-231461, 596321B, 596321R3, 596321R3BT, 596321R4, 700705299, 700705300, 86509270, 86509270PDS, 86544254, 86544254DS, 86544254PDS, 86584934, 86584934DS, 86584934PDS, 86616588, 86616591, 86616689, 86616689DS, 86616689P, B93333B, B93333P, B95031, K-34390-1, KX231471DS, KX231471PDS, S20-4268CL, S20-4969-CF, S20-8268, S523BT |
