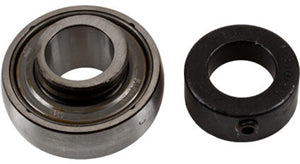

SEALED INSERT BEARING 3/4" ID - NARROW INNER RING
Product Fitment
| Make | Type | Model |
|---|---|---|
| John Deere | Planter | 71 Flexi |
Product Features
Ball Bearing Insert
Narrow Inner Ring - Sealed Standard Agricultural Applications
RA-RRB Series
- Narrow Inner ring type with self-locking collar
- Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
- Factory pre-lubricated
- Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment
Product Specifications
| Bearing I.D. | 3/4" |
|---|---|
| Bearing Type | Insert Bearing |
| Greasable / Sealed | Sealed |
| Inner Race | Narrow |
| Outer Race Shape | Spherical |
| Shaft Lock Type | Lock Collar |
| Bearing O.D. | 47mm |
| Bore Shape | Round |
| Basic Outer Ring Size | 204 |
| Inner Ring Width | .844 Inch |
| Outer Ring Width | .551 Inch |
| Brand | Timken |
| Interchange Numbers | 010-11260, 1011260, 146077, 17356, 175032, 2028772, 353114X1, 400008ES, 455957R91, 455957R92, 47577200, 500-01-942, 50001942, 700705522, 711762, 80146077, 84330029, 895664L, 9-90186, 9110650, 990186, B10700, F87326, JAC353660, JD9217, K3565, LB700542, NPS012RPC, RA012NPPB, SW5217, TIS-F1619, TISF1619, TP-JD9217, TPJD9217, TR251D288 |
