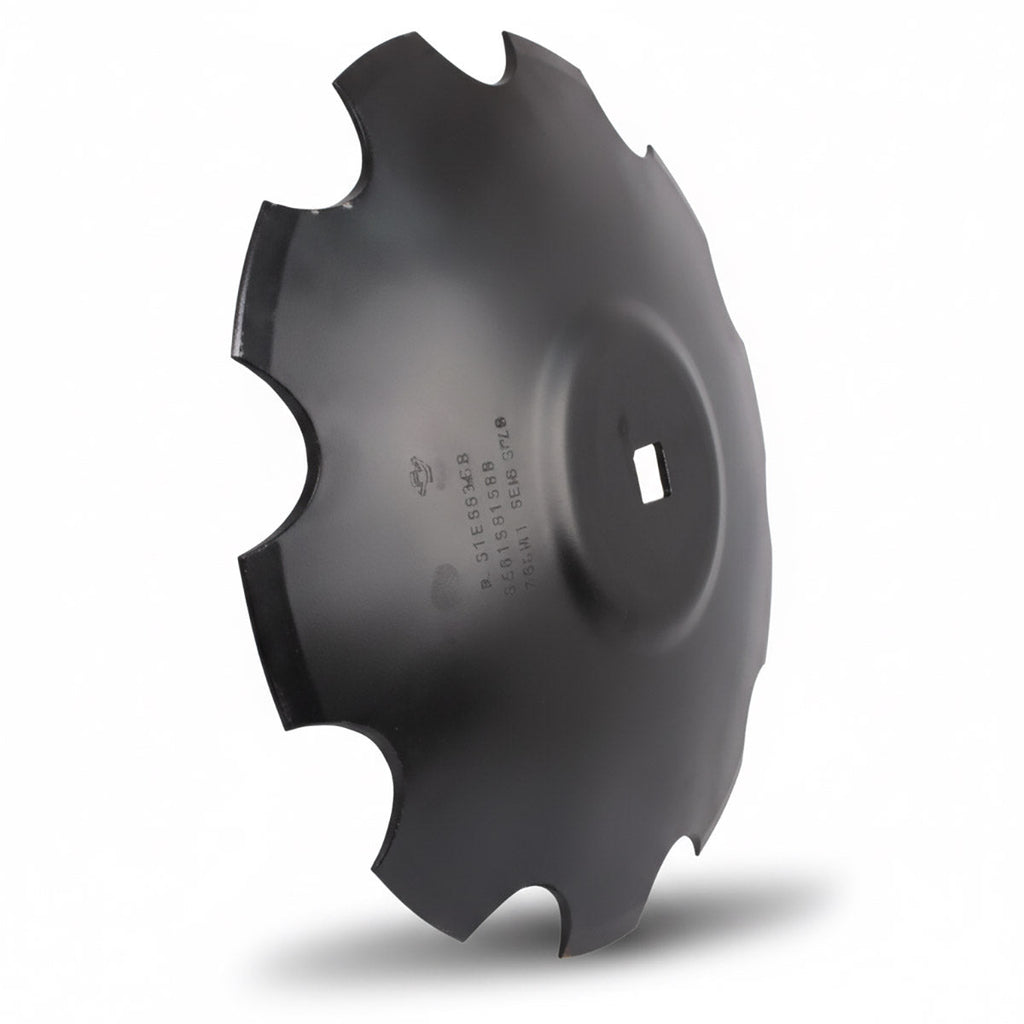

20 INCH X 3/16 INCH NOTCHED CRIMP CENTER BLADE WITH 1-1/8 INCH SQUARE AXLE
Product Fitment
| Make | Type | Model |
|---|---|---|
| Case IH | Disc Harrow | 122, 310, 475, 496, 760 |
| International Harvester | Disc Harrow | 120, 130, 132, 150, 330, 470, 480, 490 |
Product Specifications
| Application | Crimp Center Disc Blade |
|---|---|
| Axle Size | 1-1/8 Inch Square |
| Concavity | Standard |
| Concavity Specification | 2.00 Inch |
| Crimp Center Diameter | 6 Inch |
| Diameter | 20 Inch |
| Edge | Notched |
| Hole Type | Single Punch |
| Material | Boron 15B26 |
| Rockwell Hardness | 46-52 Rockwell Scale |
| Thickness - Inch or Gauge | 3/16 Inch |
| Thickness - MM | 5.0 MM |
| Wear Tuff Coat | No |
| Brand | Osmundson |
| Interchange Numbers | 31196R1, 602-609FB, 609FB, BFC203603 |
