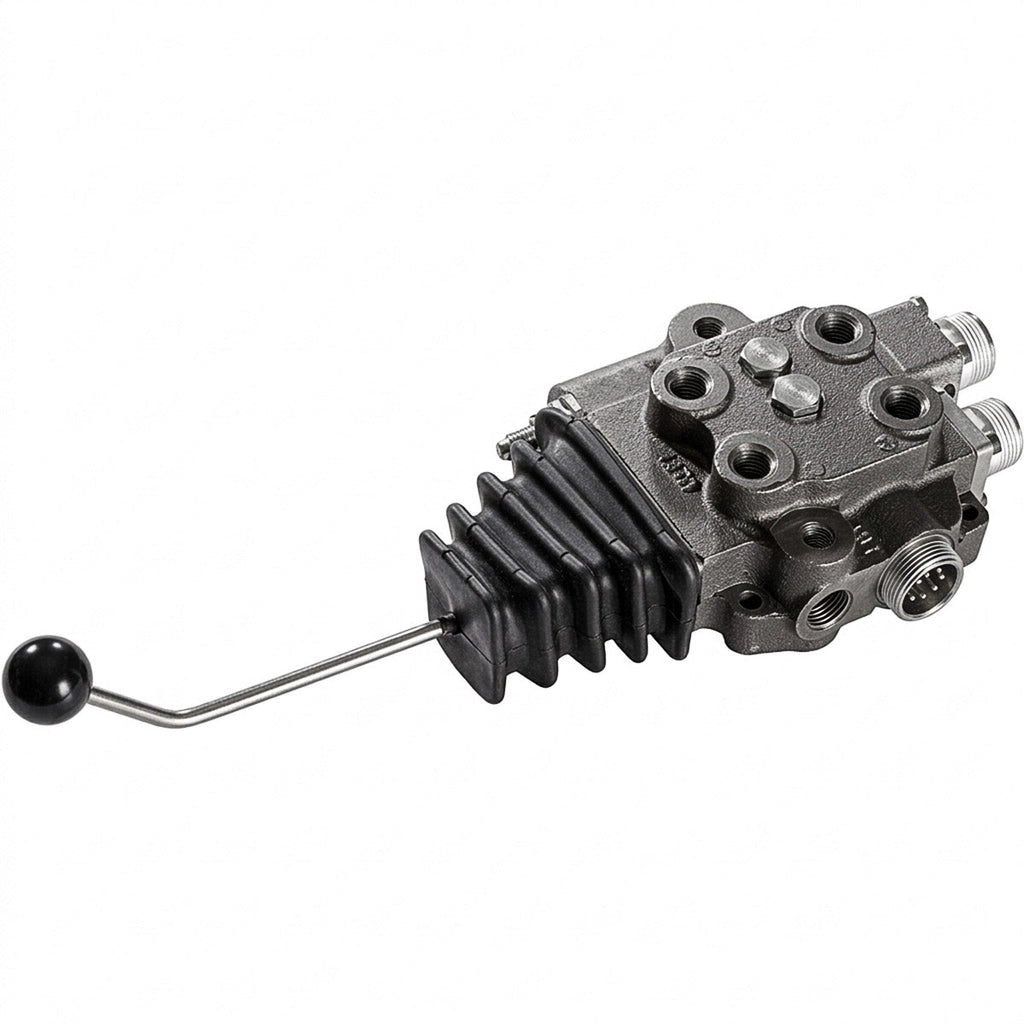

2 SPOOL HYDRAULIC VALVE, OPEN CENTER, WITH JOYSTICK
Product Specifications
| Number of Valve Spools | 2 |
|---|---|
| Hydraulic Systems | Open |
| Max Flow | 30 GPM |
| Spool 1 Specification | 4 Way, 3 Position, Open Center |
| Spool 1 Action | 3 Position Spring Centered |
| Spool 2 Specification | 4 Way, 3 Position, Open Center |
| Spool 2 Action | 3 Position Spring Centered |
| Relief Port | Adjustable 1500-2500 PSI (Set At 2000 PSI) |
| Power Beyond Port | Conversion Plug |
| Outlet Location | End Outlet |
| Port Size | Inlet And Outlet 3/4 Inch Nptf, Working Ports 1/2 Inch Nptf |
| Handle | Joystick |
| Brand | Cross |
| Interchange Numbers | 136256, 196-136256, 196136256, 262-1206, SBA22OCWJ |
