15" LIFT X 8,000 LB, TOP WIND, SQUARE TUBE BULLDOG JACK - NO MOUNT TUBE / PLATE
Product Features

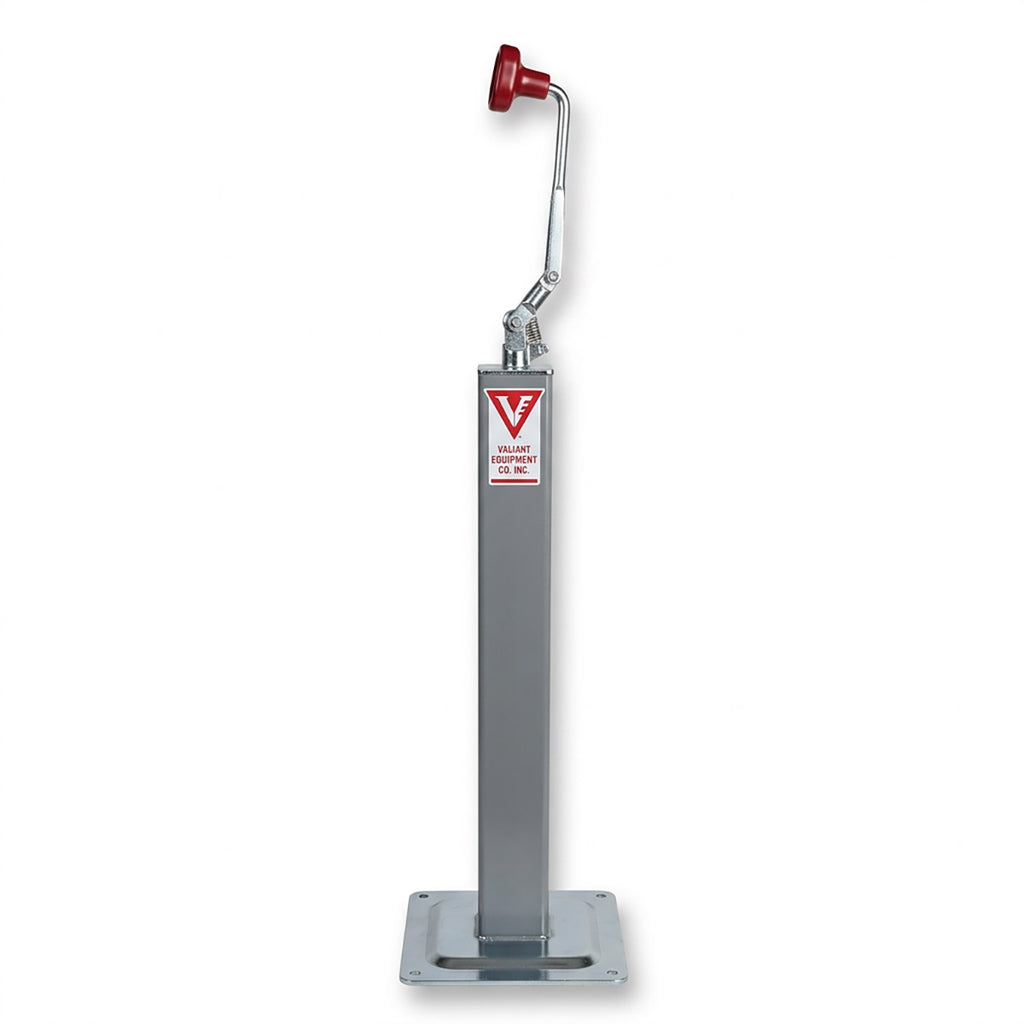

Top Wind Square Tube Bulldog Trailer Jack
BULLDOG's 8,000 lbs. support capacity square jack serves the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. The compact design of these jacks makes them ideal for tight-fitting applications where 3" and 4" square tube jacks are too big!
- Use the painted outer tube as the final finish or primer
- Zinc-plated inner tube and drop leg
- 4.7" Outer / inner tube overlap - results in optimal side load performance
- 5/8" screw stem - provides insurance against screw stem twisting off
- Patented screw nut stop - prevents screw and/or nut damage when jack is fully extended
- Topwind model - bushing in top cap, eagle claw grip
Product Specifications
| Capacity Range | 7,000 - 12,000 Lbs |
|---|---|
| Handle Style | Top Wind |
| Lift Range | 15 Inch |
| Mount Style | Direct Weld |
| UPC | 086693907048 |
| Trailer Jack Category | Square Trailer Jack |
| Retracted Height | 22.66 Inch |
| Extended Height | 51.41 Inch |
| Foot Plate Size | 6.0 x 8.0 Inch |
| Capacity | 8,000 Lbs. |
| Brand | Bulldog |
| Interchange Numbers | 190500 |
