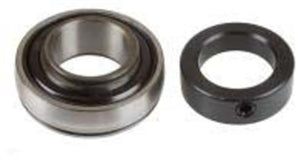

SEALED INSERT BEARING 1-3/4" ID - NARROW INNER RING
Product Features
Ball Bearing Insert
Narrow Inner Ring - Sealed Standard Agricultural Applications
RA-RRB Series
- Narrow Inner ring type with self-locking collar
- Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
- Factory pre-lubricated
- Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment
Product Specifications
| Bearing I.D. | 1-3/4" |
|---|---|
| Bearing Type | Insert Bearing |
| Greasable / Sealed | Sealed |
| Inner Race | Narrow |
| Outer Race Shape | Spherical |
| Shaft Lock Type | Lock Collar |
| Bearing O.D. | 85mm |
| Bore Shape | Round |
| Basic Outer Ring Size | 209 |
| Inner Ring Width | 1.188 Inch |
| Outer Ring Width | .866 Inch |
| Brand | Timken |
| Interchange Numbers | 1130250, 133941, 15-50-019, 1550019, 175102, 3616, 403961D, 47298, 51318, 51381, 51557, 668718R92, 668719R91, 668719R92, 71130250, 842625M1, ANPS112RPC, FH05041, FH051318, RA112NPPB, SW1975, TP-AE12601, TPAE12601 |
