SEALED INSERT BEARING 1-1/4" ID - NARROW INNER RING - Quality Farm Supply
Roll over image to zoom in
SEALED INSERT BEARING 1-1/4" ID - NARROW INNER RING - Quality Farm Supply

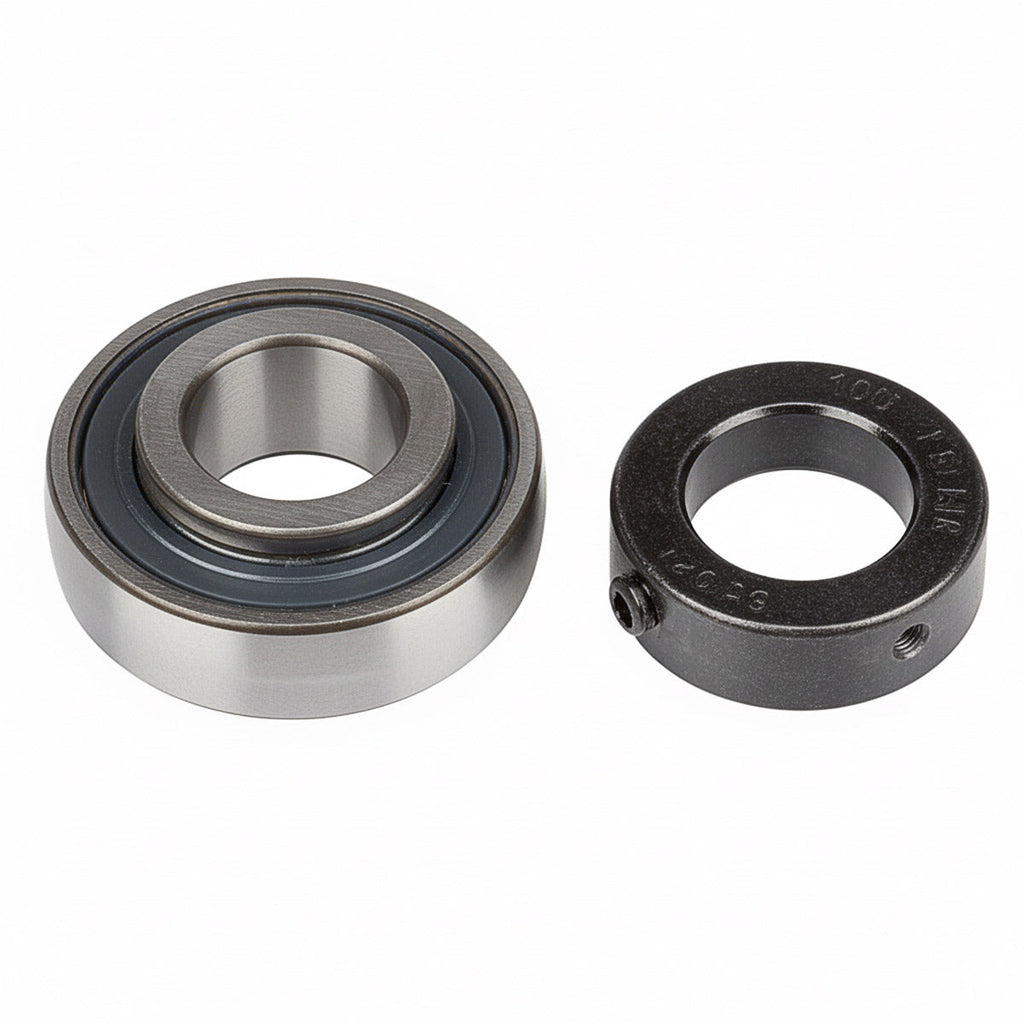

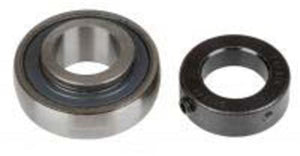

SEALED INSERT BEARING 1-1/4" ID - NARROW INNER RING

SKU: 308-RA104RRB
Brand: Timken
KMC # 03-051-016
Check if this fits your equipment?
Price:
$45.47
Stock:
In stock (231 units), ready to be shipped
Min/Multiple:
1

Product Fitment

MakeTypeModel
Massey FergusonCombine82
Massey FergusonCorn Head1134, 1143, 1144, 1153, 1163, 1164, 1183, 24, 33, 34, 43, 44, 44-0, 54C, 62, 63, 63C, 64, 83

Product Features

Ball Bearing Insert

Narrow Inner Ring - Sealed     Standard Agricultural Applications

RA-RRB Series

  • Narrow Inner ring type with self-locking collar
  • Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
  • Factory pre-lubricated
  • Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment

Product Specifications

Bearing I.D.1-1/4"
Bearing TypeInsert Bearing
Greasable / SealedSealed
Inner RaceNarrow
Outer Race ShapeSpherical
Shaft Lock TypeLock Collar
Bearing O.D.72mm
Bore ShapeRound
Basic Outer Ring Size207
Inner Ring Width1.00 Inch
Outer Ring Width.748 Inch
BrandTimken
Interchange Numbers010-17513, 010830, 03-051-016, 03051016, 10033, 1017513, 108050, 15A15844, 21228, 3051016, 3127, 501579E, 511314, 511736E, 51292, 565672R91, 565672R92, 57179, 63261, 700717774, 7441-6, 74416, 80063261, 831233M1, 831514M1, 833356M1, 833356M91, 84330041, 8593, 9-90295, 990295, A565672R1, A833356M1, AE28296, AM3127, FH207-20, H565672R92, JD8593, K3315, KMC03-051-016, KMC03051016, N10830, NPS104RPC, RA104NPPB, SA20720, TP-JD8593, TPJD8593
