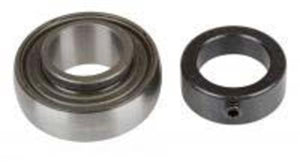

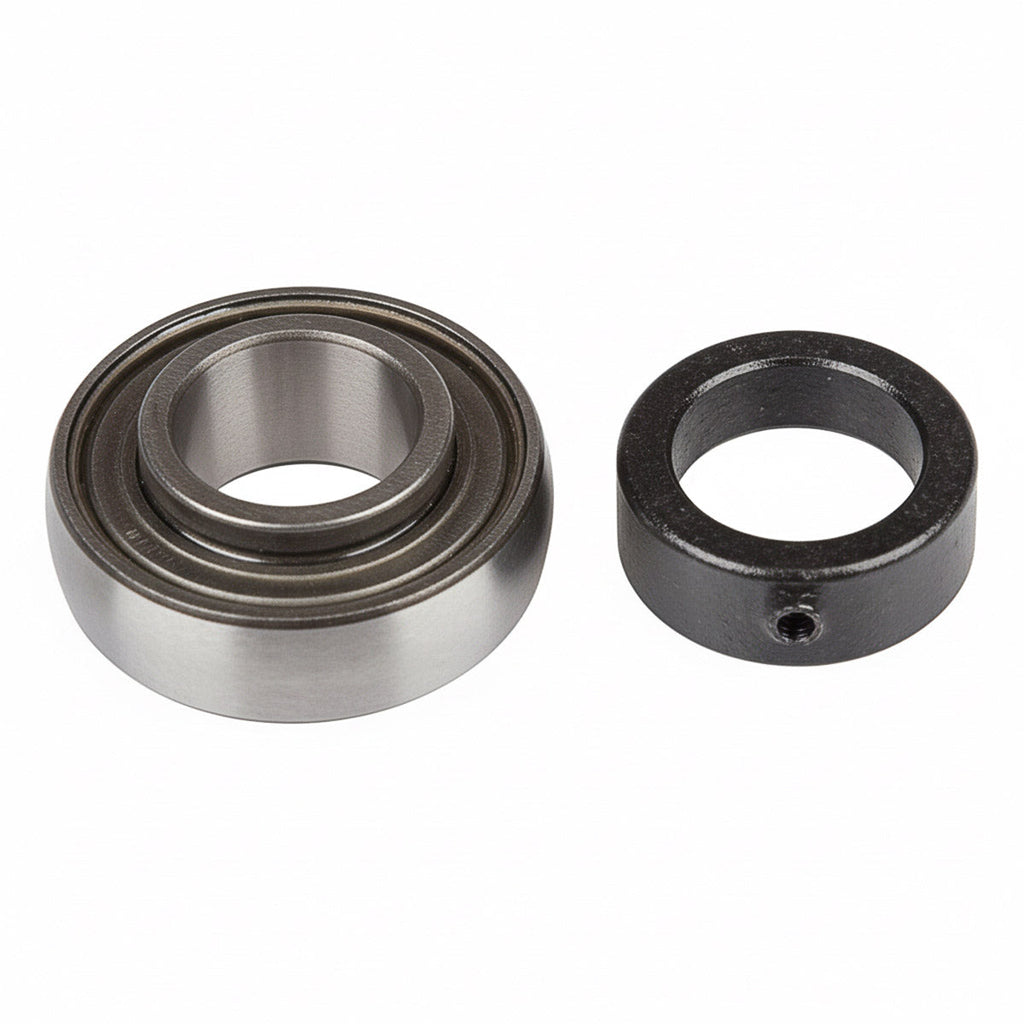

SEALED INSERT BEARING 1-1/4" ID - NARROW INNER RING
Rated 5.0 out of 5 stars
1 Review
Product Features
Ball Bearing Insert
Narrow Inner Ring - Sealed Standard Agricultural Applications
RA-RRB Series
- Narrow Inner ring type with self-locking collar
- Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
- Factory pre-lubricated
- Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment
Product Specifications
| Bearing I.D. | 1-1/4" |
|---|---|
| Bearing Type | Insert Bearing |
| Greasable / Sealed | Sealed |
| Inner Race | Narrow |
| Outer Race Shape | Spherical |
| Shaft Lock Type | Lock Collar |
| Bearing O.D. | 62mm |
| Bore Shape | Round |
| Basic Outer Ring Size | 206 |
| Inner Ring Width | .938 Inch |
| Outer Ring Width | .709 Inch |
| Brand | Timken |
| Interchange Numbers | 010-12061, 1012061, 1133728, 1270174C91, 1308984, 134686, 156010C92, 156011C91, 156011C92, 15A8677, 16070, 168264, 168264F, 1FRA103RRB2, 22690X, 2419CHA, 25H332, 301154ES, 311020101, 3127, 339565, 374101A1, 38766, 38766NH, 4047-001, 404700, 4047001, 500-01-688, 50001688, 50344, 520065, 535969, 536050, 617668R91, 617668R92, 700050344, 71308984, 80038766, 80065117, 80134686, 8050650, 834505M1, 84330031, 84484181, 87566353, A38766, A617668R1, AN210541, ARA103NPPB2, H617668R92, JD8545, K2751, K2751IMP, MC520065, NPS103RP2C, RA103NPPB2, TP-JD8545, TPJD8545, Z444A |
