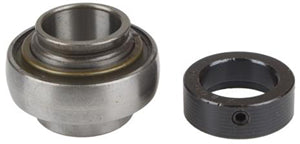

RELUBE INSERT BEARING-1-3/4" ID- WIDE INNER RING
Product Features
Ball Bearing Insert
Wide Inner Ring - Greasable Standard Industrial / Agricultural Applications
G - KRRB Series
- Wide Inner Ring with Self Locking Collar
- For extremely dirty or wet conditions
- R-Seals with flared lips firmly contact the ground OD of the inner ring and provide a positive seal against dirt and other contaminants while effectively retaining the lubricant
- Shroud-Seals provide extra effectiveness and protection
- Extra-wide design provides additional shaft support and extra-large grease capacity
- Spherical OD
Product Specifications
| Basic Outer Ring Size | 209 |
|---|---|
| Bearing I.D. | 1-3/4" |
| Bearing O.D. | 85mm |
| Bearing Type | Insert Bearing |
| Bore Shape | Round |
| Brand | Timken |
| Greasable / Sealed | Greasable |
| Inner Race | Wide |
| Inner Ring Width | 1-11/16 Inch |
| Interchange Numbers | 15-50-253, 1550253, 33-051-068, 33051068, AWPS112GRC, JD9339, KMC33-051-068, KMC33051068, TG1112KRRB, WPS112GRC, YG228NL |
| Outer Race Shape | Spherical |
| Outer Ring Width | .866 Inch |
| Shaft Lock Type | Lock Collar |
